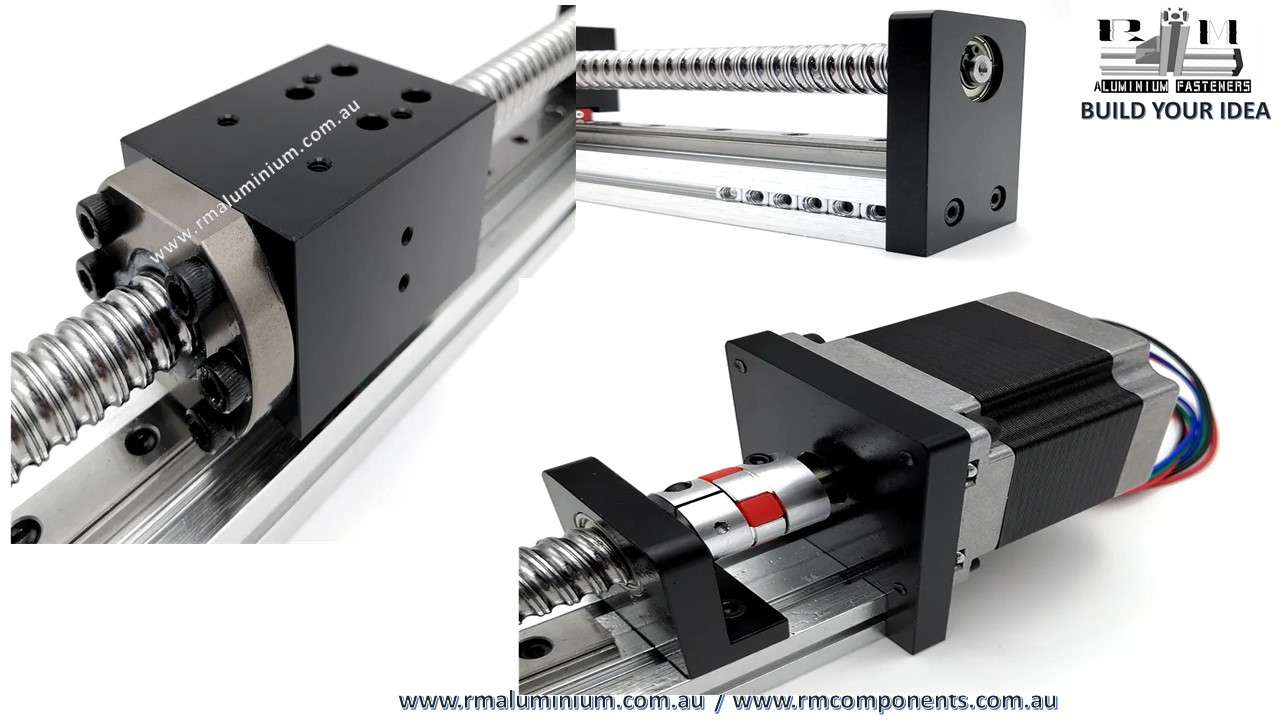

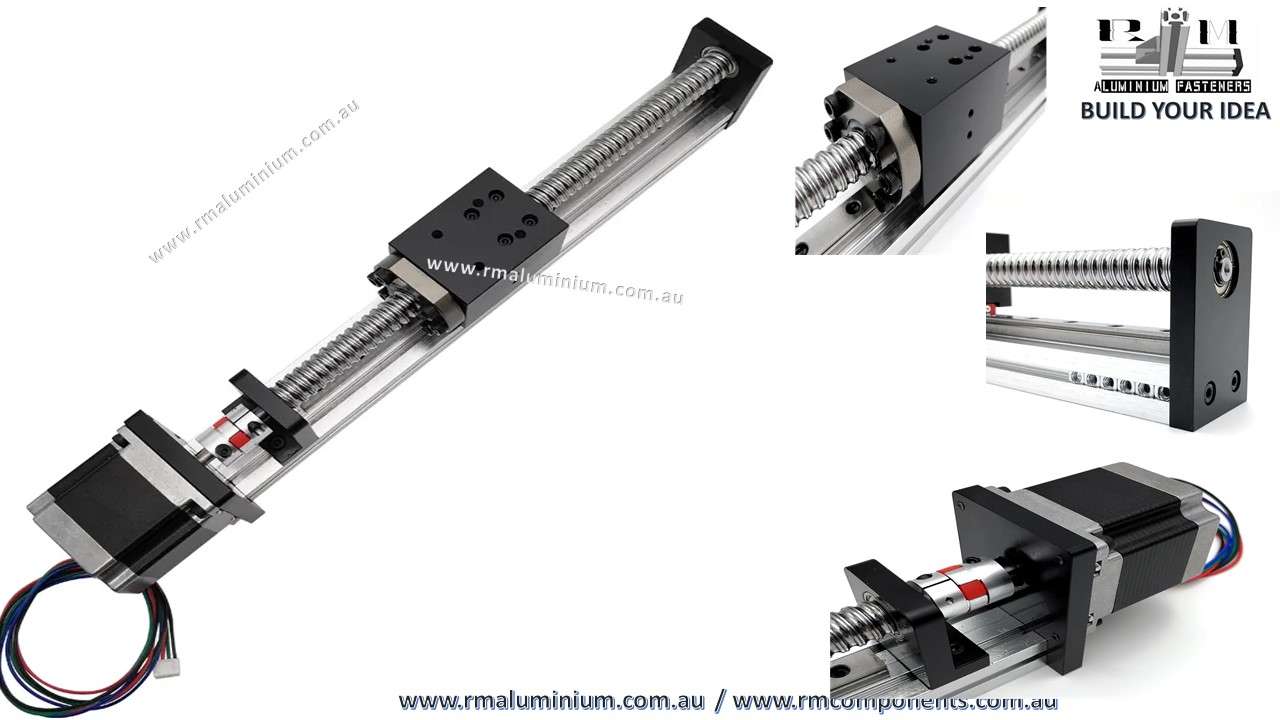

Description Max vertical : 15Kg Max Horizontal : 25kg Max Vertical Full speed: 40~90mm/s Max Horizontal Full speed: 80~230mm/s Position Accuracy: 0.02mm Max Thrust:188~471 Package include: 1X X/Y axis Full kit and pre drilled, tap and assembled ready to use Linear rail, ball screw actuator . Some information kit accessories : 1X MGN12 linear rail with linear block 1X SFU 1605 ball screw with nuts and housing block 1X NEMA 23 stepper motor 1X NEMA 23 stepper motor bracket 1X L shape ball screw support bracket 1X ball screw end bracket 1X fix jaw coupling to suit NEMA23 and 1605 ball screw 1X 2040 Silver slot extrusion Mechanical Dimensions Motor parameters Model No Step angle Motor flange size Motor length Holding torque Current Resistance Inductance Rotor Inertia Lead wire (°) (mm) L (mm) ( N.m) (A) ( Ω) ( mH) (g.cm⊃2;) (No.) 57HS5417-21-500Z 1.8 57 56 0.93 2.0 3.0±20% 3.19 200 4 Detailed Images if you have any question or require custom size please contact us: Related
