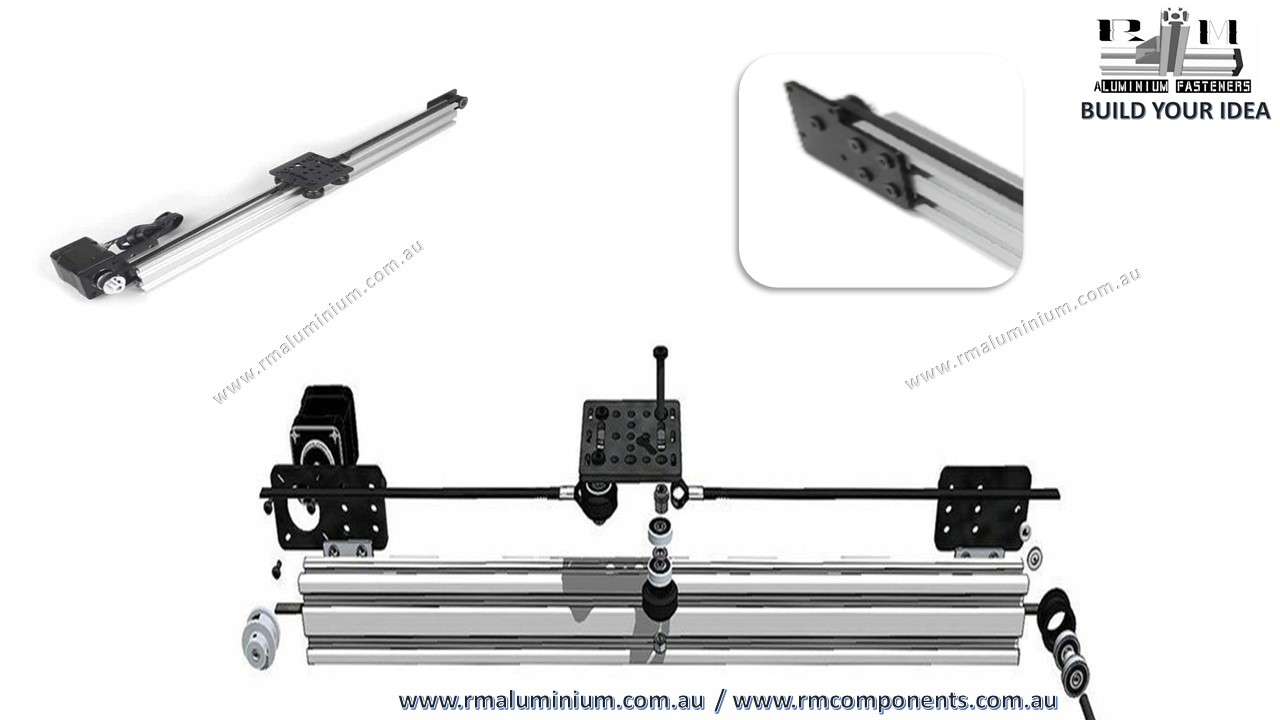

Description 500mm Belt Actuator Kit provides smooth operation for a Gantry along 20×20 V-Slot Linear Rail. It is both accurate and quick, ideal for Camera Sliders. This kit is an easy way to get all the pieces needed for the build. The kit includes : Item 1X Neman 17 Stepper Motor 1X GT2 (2mm) Aluminium Timing Pulley 20 Tooth 4X Metric Aluminium Spacers – 30mm 1X Metric Aluminium Spacers – 3mm 4X M3 Button Head Screws – 35mm 1X Smooth Idler Pulley Kit WHEEL-PULLEY-KIT 8X M5 Low Profile Screws – 8mm 8X T-Nuts – 1 Piece 2X Actuator Pulley Plate 4X Cable Tie – 100mm 1X 20mm V-Slot Gantry Plate 4X Solid V Wheel Kit 2X Metric Aluminium Spacers – 6mm 2X Eccentric Spacers – 8mm Hex – 6mm Height 4X M5 Low Profile Screws – 25mm 1X V-Slot 20 x 20mm Silver X 1000mm Length. 3X GT2 (2mm) Timing Belt (per meter) 1X PDF assembling Manual Tip: Don’t forget to slide the Gantry onto the V-Slot before you attach both Actuator Pulley Plates. Don’t forget to attach the Timing Pulley to the Nema17B Motor shaft before attaching the Motor to the Plate. Follow this process for correct tensioning the GT2 Belt: Tighten the screws on one Actuator Pulley Plate to secure the Plate in position. Feed the Belt over the Pulleys and through the hollow center of the V-Slot Tie or Clamp the GT2 Belt on both sides of the Gantry Pull the other Actuator Pulley Plate away to Tension the GT2 Belt, tighten the screws on the Plate while it is under tension If you require any other lengths please let us ! Related
