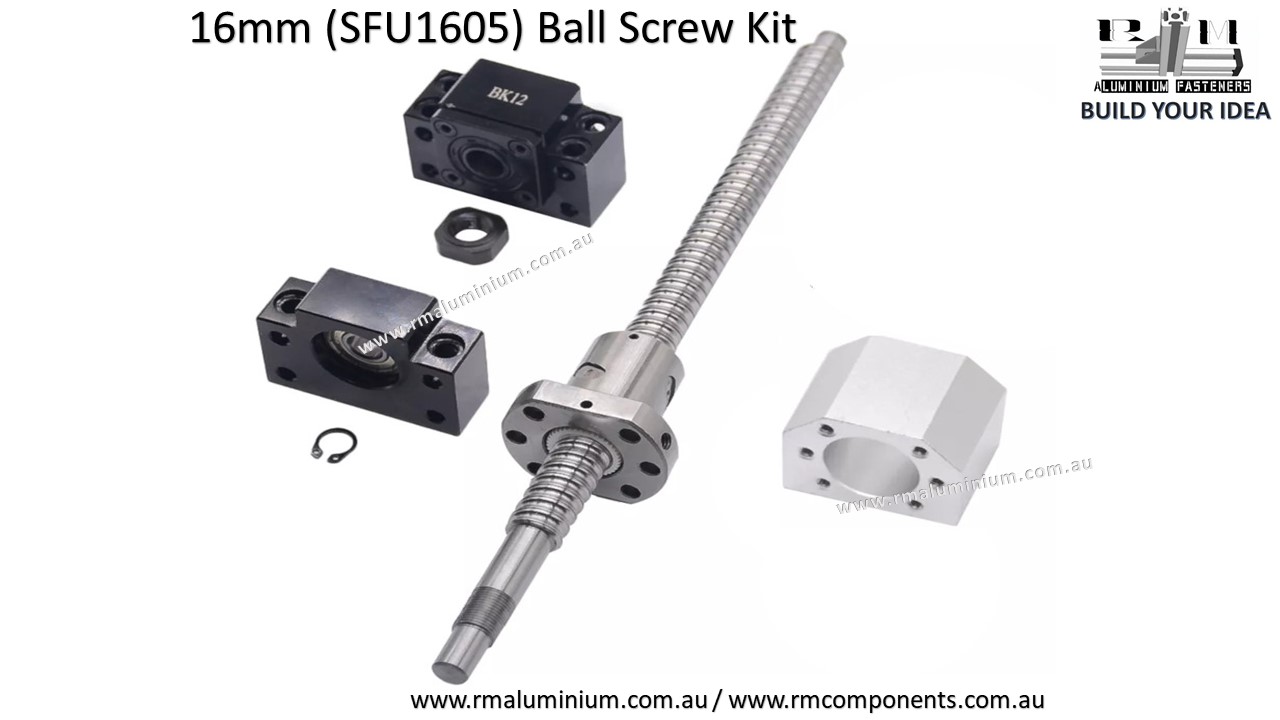

Description With up to 90% efficiency, ball screws are widely used in applications requiring high precision and repeatability which include but not limited to: robotics, CNC machines and linear actuators. Ball screws utilise ball bearings between the screw and nut, drastically reducing backlash. Due to the high mechanical efficiency of ball screws, the torque required to operate a ball screw is approximately 30% of conventional screw-driven transmission. Specifications Ball Screw Length: 1000mm Ball Screw Diameter: 16mm Pitch: 5mm Fabricating process: Rolled SFU1605 Ball Screw Drawing Ball Nut Drawing Included 1000mm SFU1605 Ball Screw and Nut BF12 Floating Ball Screw Support with clip BK12 Fixed Ball Screw Support with a lock collar Ball Nut Housing Related
