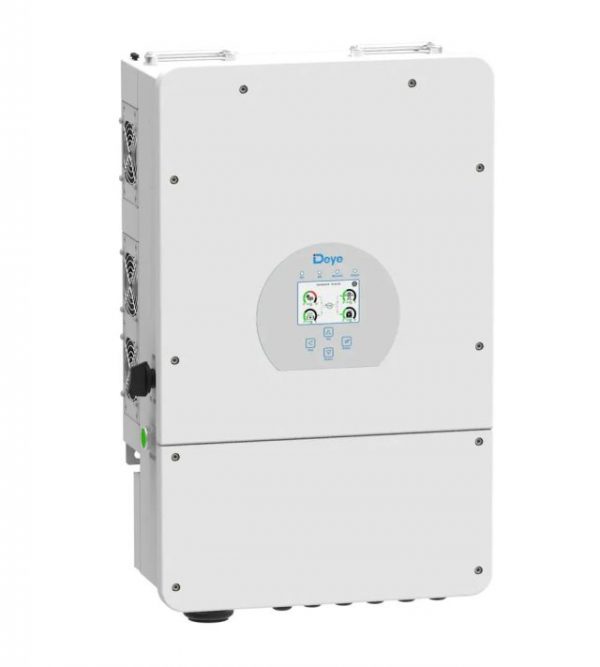

Description: This inverter is an on and off-grid inverter. Features: Colour touch screen LCD display IP65 rated Dual MPPT High PV input voltage range 5-Year warranty Low noise Wifi monitoring Model SUN-5K-SG01 AC Specifications: Rated power: 5000 W Maximum output power: 5500 W Peak power (off-grid): 2x rated power for 10 s AC output rated current: 21.7 A Maximum AC output current: 25 A Maximum AC continuous passthrough: 35 A Power factor: 0.8 leading to 0.8 lagging Output frequency: 50 / 60 Hz Output Voltage: 220/230/240 Vac single phase Current harmonic distortion: THD < 3 % (Linear load < 1.5 %) Maximum efficiency: 97.6 % PV Specifications: Maximum PV input power: 6500 W PV input voltage range : 100 V to 500 V (ideal 370 V) MPPT voltage range: 125 V to 425 V Full load DC voltage range: 240 V to 425 V Start-up voltage: 150 V Number of MPPTs: 2 Number of PV strings per MPPT tracker: 1 Maximum PV input current : 13 A 13 A Battery Specifications: Battery voltage range: 40 V to 60 V Battery type supported: Lead-acid or Lithium-ion (LiFePO4 / NMC) Maximum charging current: 120 A Maximum discharge current capability: 120 A Lead-acid battery charge type: 3-stage External temperature sensor: Optional BMS communication: Yes. Communication with The Sun Pays Lithium batteries are recommended. Consult battery supplier for compatibility. Safety Features: PV input lightning protection Anti-islanding protection PV string input reverse polarity protection Insulation resistor detection Residual current monitoring unit Output over current protection Output shorted protection Output over-voltage protection DC surge protection: Type II AC surge protection: Type II General Specifications: Operating temperature range: -25 °C to 60 °C, > 45 °C Derating Cooling: Smart cooling Noise: < 30 dB Communication with BMS: RS485 & CAN Weight: 20.5 kg Size: 330 x 580 x 232 mm Ingress protection: IP65 Warranty: 5 years Expansion: More Inverters Frequency droop control Maximum 16pcs parallel Single-phase: Yes Three-phase: One inverter per phase Installation: A competent, qualified professional installer is required for the installation of all electrical systems. DATA SHEET Email FOR stock availability (E&OE)
