Nema24 Closed Loop Stepper Motor and HBS57 Driver Bundle – 3.0Nm

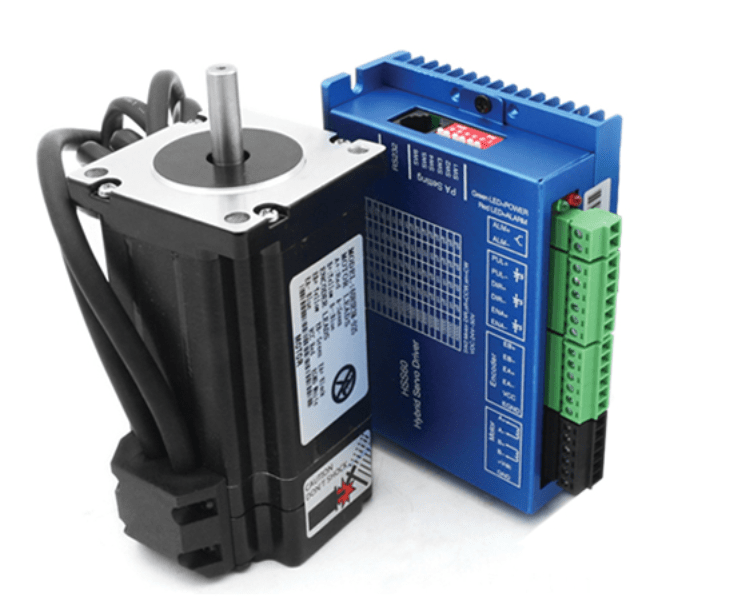

Description Closed-loop Stepper Motor Specifications: Voltage: 2.25VDC Rated Current: 5A Motor Inductance: 1.8mH Holding Torque: 3.0Nm Encoder cable length: 5000m Motor cable length: 500mm Weight: 1.6kg Features of the Closed-loop Stepper Motor: High-performance and low inductance Closed-Loop Hybrid Stepper Motor. Comes with a handy 5m long encoder cable for ease of wiring. Low vibration and high efficiency. Built-in quadrature encoder. (1000 line encoder) High precision ensures precise carving in CNC applications Included: 3.0Nm Closed Loop Stepper Motor 5m long encoder cable HBS57 Closed-loop Stepper Motor Driver 1m 2 Core DC power cable. Motor Coil Wiring Diagram Encoder Lead Pinout Closed Loop Stepper Motor Driver Terminal Lead Colour EGND WHITE VCC RED EA- BLUE EA BLACK EB- GREEN EB YELLOW HBS57 Closed-loop Stepper Motor Driver Features: Anti-Resonance features provide smooth operation through the RPM range. Low noise and low vibration. 32bit processor and improved DSP control. Closed-loop vector control technology. Multi-Stepping allows a low-resolution step input to produce a higher microstep output for smooth system performance. Microstep resolutions programmable via dip switch array, from full-step to 1/128 microstepping. Optically isolated inputs reduce noise. Alarm outputs for fault diagnosis. Suitable for Nema23 and Nema24 sized closed-loop stepper motors. Support Pulse/Direction, CW/CCW or RS232 control modes. (Step/Dir control recommended) Overvoltage and overcurrent protection. HBS57 Closed-loop Stepper Motor Driver Specifications: Supply voltage: 20 to 50 VDC Output current: Up to 5.0A Peak (Load Dependent) Logic signal current: 7 to 20mA Pulse input frequency: 200 kHz Encoder Resolution (PPR): 1000 Isolation resistance: 500 MΩ Operating temperature: 0 to 50 °C Operating Humidity: 40 to 90%RH Vibration: 5.9 m/s² Max Weight: Approx. 300 g Dimension: 118 x 75x 34 mm HBS57 Stepper Motor Driver Engineering Drawings Use the Closed-loop Stepper Motor and driver bundle to drive: Nema23/24 compatible CNC machines Laser Cutters Plasma Cutters Robotic Actuators Automated Linear Actuators Tips and Tricks The closed-loop stepper motors are best powered by a 36V or 48V power supply for higher speed and greater torque. For existing CNC builds, use these motors with 8x8mm jaw couplings for a drop-in replacement. Related
