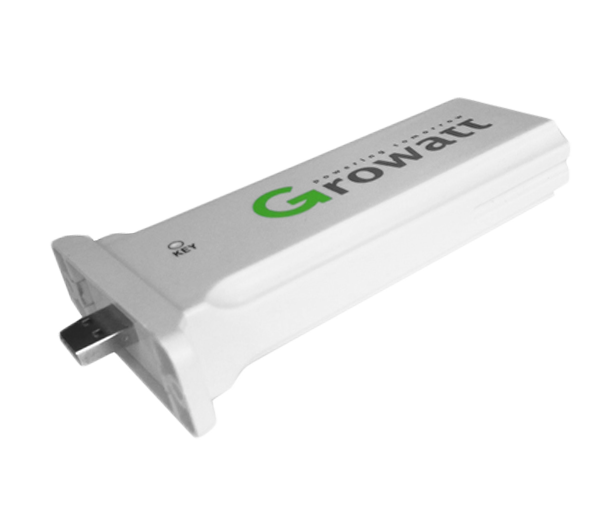

Wifi-F is a plug-and-play monitoring device to help monitor the status of the PV system, this device is installed on inverter or controller for uploading and receiving datas from the server. Dimensions(Length/Width/Height): 135x79x29 mm Weight63gManual language: English, Chinese Wireless Type: WiFi Wireless Standard: 802.11 b/g/n Transmit power 802.11b: 20dBm(Max.) 802.11g: 18dBm(Max.) 802.11n: 15dBm(Max.) Receiver sensitivity 802.11b: -89dBm(Max.) 802.11g: -81dBm(Max.) 802.11n: -71dBm(Max.) Operating Current: UART: 9600bps; Ethernet: 100Mbps Operating Voltage: 5V ( /-15%) Operating Temperature: -20℃ ~ 65℃ Storage Temperature: -40℃ ~ 70℃ Network Type: AP (Access Point); Station Mode (with Soft AP)
