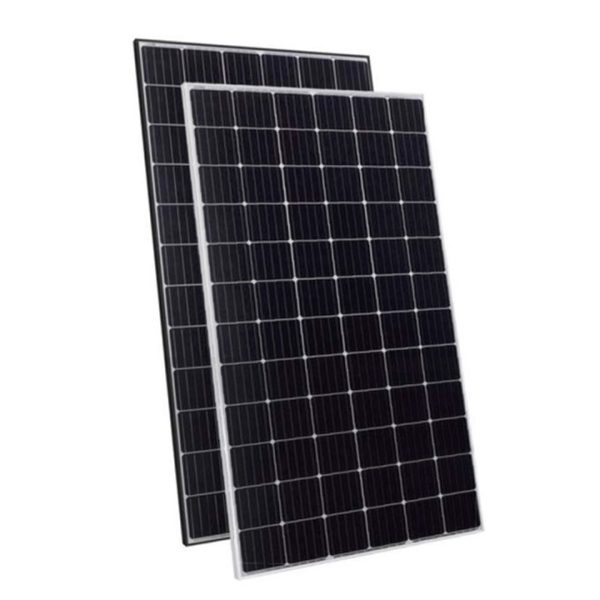

Description Espsc 300 monocrystalline solar module High-qualitywith 60 cells and 3 bypass diodes in power classes 300 wp for grid connected systems.ReliableThe high quality level of era solar guarantees long life-time and high earnings.SolidAn aluminium hollow-chamber frame on each side combined with low-iron and tempered solar glass ensures high load capacity resistance.Performance guaranteeEra solar grants a power guarantee of 90% of nominal power output up to 10 years and 80% up to 25 years. DC Electrical Characteristics STC Power Rating 340W PTC Power Rating 313.26W 1 STC Power per unit of area 175.2W/m2 (16.3W/ft2) Peak Efficiency 17.52% Power Tolerances 0%/ 3% Number of Cells 72 Nominal Voltage not applicable Imp 8.79A Vmp 38.7V Isc 9.24A Voc 47.1V NOCT 45°C Temp. Coefficient of Isc 0.05%/K Temp. Coefficient of Power -0.39%/K Temp. Coefficient of Voltage -0.137V/K Series Fuse Rating 15A Maximum System Voltage 1500V Mechanical Characteristics Type Mono PERC Output Terminal Type Multicontact Connector Type 4 Output Cable Wire Gauge 12 AWG Output Cable Wire Type PV Wire Output Cable Wire Length 900mm (35.4in) Frame Color Clear Backsheet Color White Length 1,956mm (77in) Width 992mm (39.1in) Depth 40mm (1.6in) Weight 26.5kg (58.4lb) Installation Method Rack-Mounted Warranty and Certifications 80% Power Output Warranty Period 25yrs 90% Power Output Warranty Period 12yrs Workmanship Warranty Period 10yrs UL 1703 Fire Classification data not available Compliances IEC 61215, IEC 61730, TUV CSI Listed No
