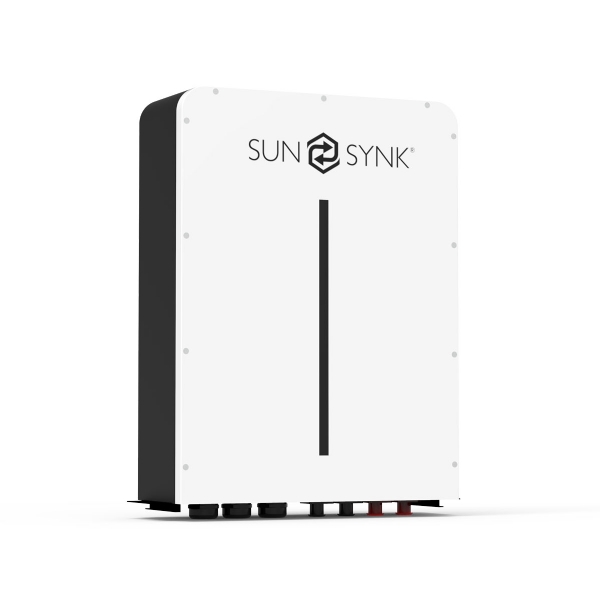

The spring series lithium iron phosphate battery is one of new energy storage products developed and produced by Sunsynk, it can be used to support reliable power for various types of equipment and systems. The series is especially suitable for applications of high power, limited installation space, restricted load-bearing and long life cycle. The battery has a built-in management system, which can manage and monitor cell information, including voltage, current and temperature. What’s more, BMS can balance cell charging and discharging to extend cycle life. Multiple batteries can connect in parallel to expand capacity and power for larger capacity and longer power supporting duration requirements. Features Battery Chemistry LiFePO4 Capacity (Ah) 100 Scalability Max 32 pcs in parallel (163.8kWh) Nominal Voltage 51.2 Operating Voltage 43.2 – 57.6 Energy (kWh) 5.12 Usable Energy (kWh) 1 4.61 Charge / Discharge Current (A) Recommend 2 Max 2 Peak [2 mins, 25°C] 50 100 150 Recommend Depth of Discharge 90% Dimension (w/h/d) mm 440 x 640 x 140 Weight Approximate (kg) 50 Master LED Indicator 5 LED (20%-100%) 3 LED (working, alarming, protecting) IP Rating of Enclosure IP65 Working Temperature Charge: 0°C – 55°C Discharge: -20°C – 55°C Storage Temperature 0°C – 35°C Humidity 5% – 95% Altitude ≤2000m Cycle Life ≥6000 (25±2°C, 0.5C, 70%EOL) Installation Wall Mounted or 19-inch standard cabinet Communication Port CAN2.0, RS485 Warranty Period 3 5 years Life Cycle Power During Warranty Period 3 16MWh@70%EOL Certification IEC62619, CE, UN38.3 1 DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters. 2 The current is affected by temperature and SOC. 3 The warranty is due whichever reached first of warranty period or life cycle power. Not included is Cable pack Sold Separately If used with Sunsynk Inverter extended warranty to 10 years T & Cs apply DATA SHEET Please EMAIL for stock availability (E&OE)
