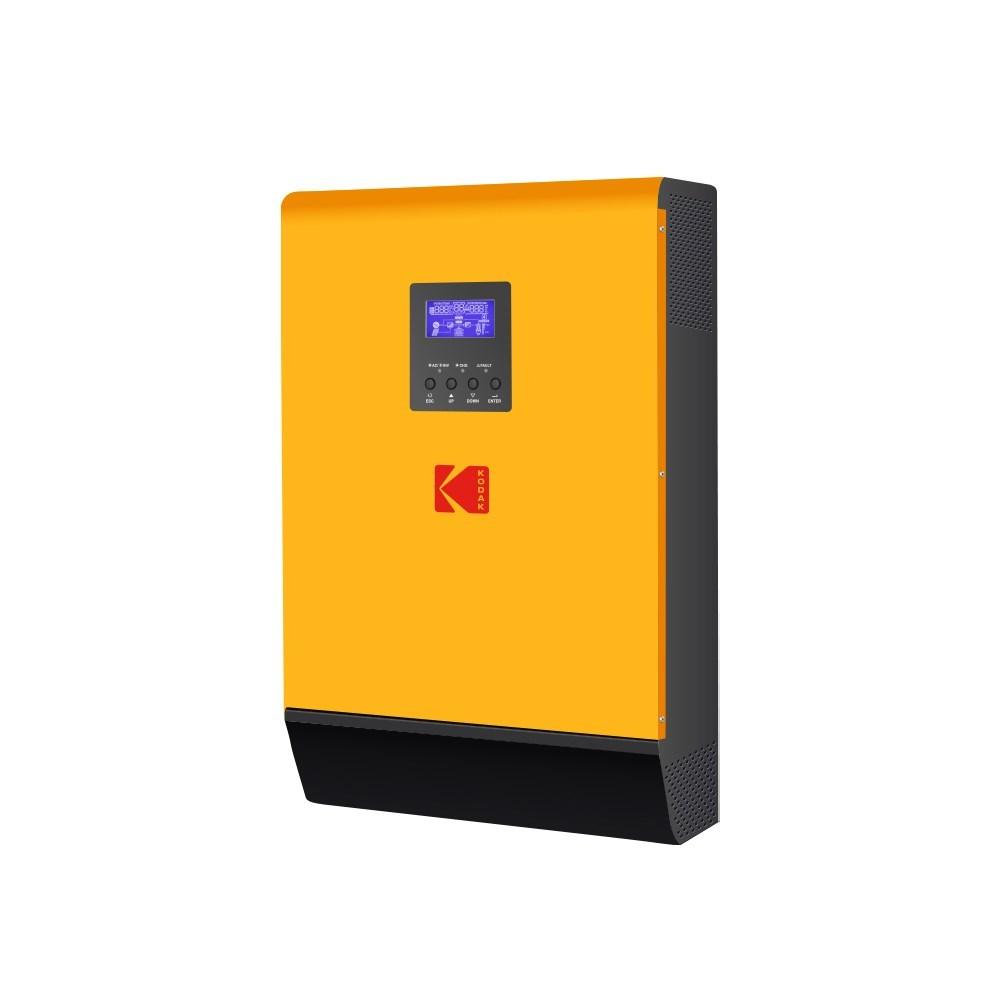

KODAK OGX5.48 Solar Off-Grid Inverter MKSII 5kW 48V

Description KODAK Off-grid inverter The OGX 5.48 is ideal for domestic projects, and can be scaled up to deliver high loads across up to 9 parallel units. The high maximum DC input voltage makes DC string design simple and matches perfectly with Kodak’s high performance Percium modules. Consider adding the ICC Module for top-end remote monitoring of the installation and greater control over Pylontech batteries. Maximize your system. Pure sine wave inverter Output power factor 1 Built in high voltage range MPPT solar charge controller Selectable input voltage range for home appliances and personal computers Selectable charging current based on application Configurable AC/Solar input priority via LCD setting Compatible to mains voltage or generator power Auto restart while AC is recovering Overload and short circuit protection Battery equalization for optimized battery performance and Lifecyle Cold start function Built in parallel kit enabling parallel operation with up to 9 units Warranty: 3 years Weight:12.88 kg Rated Power:5,000 W Min PPT Voltage:120 V Max PPT Voltage:430 VDC Startup Voltage:120 VDC Shutdown Voltage:120 V Max Input Voltage:450 V Max DC Power:4,000 W Max AC Power:5,500 W Surge AC Power:10,000 W Max DC Current:18 A Max DC Inputs:1Has DC Fuses:0 Connector: Screw Terminal  Included Connectors:1 Euro Efficiency:93 % Transformer: None IP Rating:IP20MPPT Important Please ensure you set the maximum charge rate to 25A per US2000 or 37.5A per US3000 as per the manual when installing with Pylon batteries.
