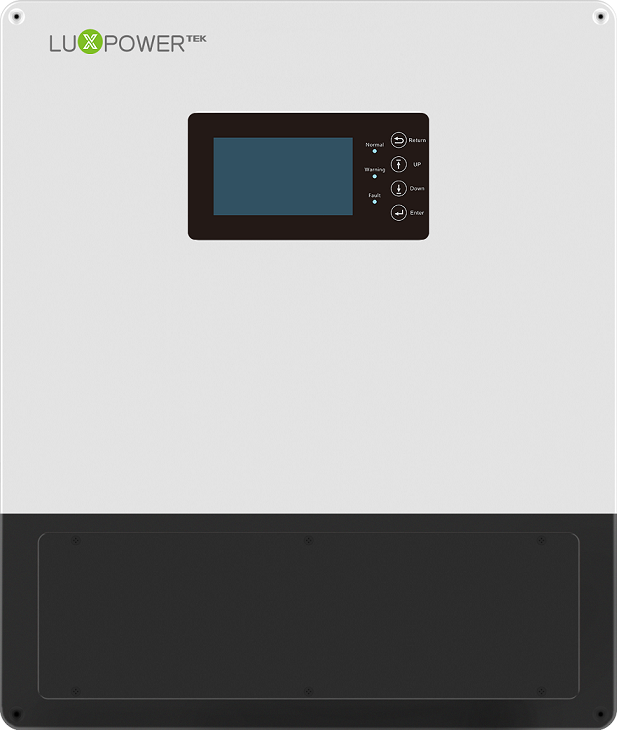

Lux Power: Inverter 10Kw Hybrid Single Phase (LUX-LXP-LB10K)

$74.89 $123.57
Description Description Battery Parameters • Compatible Battery Type: Lead-acid / Lithium • Nominal Battery Voltage: 48VDC • Battery Voltage Range: 40VDC-60VDC • Maximum Charge / Discharge Current: 210A • Maximum Charge / Discharge Power: 10 000W DC PV Input • Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W • Maximum PV Input: 16 000W • DC Input Voltage Range: 100VDC-600VDC • Nominal DC Input Voltage: 360VDC • Full Power MPPT Voltage Range: 210VDC-500VDC • Maximum DC Input Current: 25A / 15A / 15A • MPPT Number / Strings per MPPT: 3(2/1/1) AC Output (Grid) • Nominal Power: 10 000W • Nominal AC Voltage: 240VAC • Operating Voltage Range: 180VAC-270VAC • Maximum Continuous AC Current: 41.6A @ 240VAC • Nominal AC Frequency: 50Hz / 60Hz UPS Output (With Battery) • UPS Max Output Power: 10 000W • UPS Nominal Output Voltage: 240VAC • UPS Nominal Output Frequency: 50Hz / 60Hz • UPS Nominal Output Current: 41.6A @ 240VAC • Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms • Switching Time: <20ms Environment Limit • Ingress Protection: IP65 • Operating Temperature Range: -25°C to 60°C • Cooling: Fan • Communication: RS485 / WIFI / CAN
