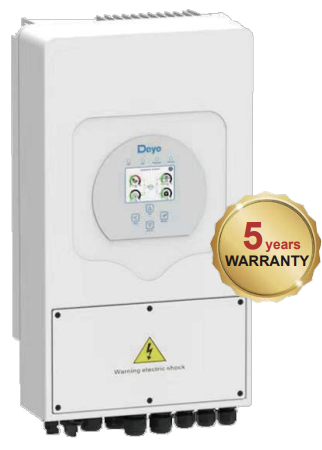

Description Deye 5kW Hybrid Inverter (1 Phase) – SUN-5K-SG01LP1-US Model SUN-5K-SG01LP1-US Equipped with colourful touch LCD. DC Couple & AC Couple – retrofit existing solar system. Maximum 16pcs parallel for on-grid & off-grid operation – multiple battery parallel supported. 6 Time periods for battery charge/discharge. Storing energy from diesel generator supported. Grid Type: Split Phase, 2/3 Phase, Single Phase Protection Degree: IP65 Noise Level: <30dB Maximum Charge/Discharge Current: 120A Charging Strategy for Lithium Ion Battery: Self-adaption to BMS Maximum DC Input Power: 6500W MPPT Range: 150-425V 2 x MPPT Start-up Voltage: 125V AC Output & UPS Power: 5000W Maximum AC Power: 5500W AC Rated Output Current: 20.8/24A Maximum AC Current: 22.9/26.4A Maximum Efficiency: 97.60% Euro Efficiency: 97% MPPT Efficiency: 99.90% Battery Type: Lead-acid or Lithium-ion (Sold Separately) Battery Voltage Range: 40-60V Communication with BMS: CAN/RS485 Smart Cooling Operation Temperature: -40°C to 60°C Installation Type: Wall Mounted. Weight: 32Kg Dimensions (W x H x D): 420 x 670 x 233 mm
