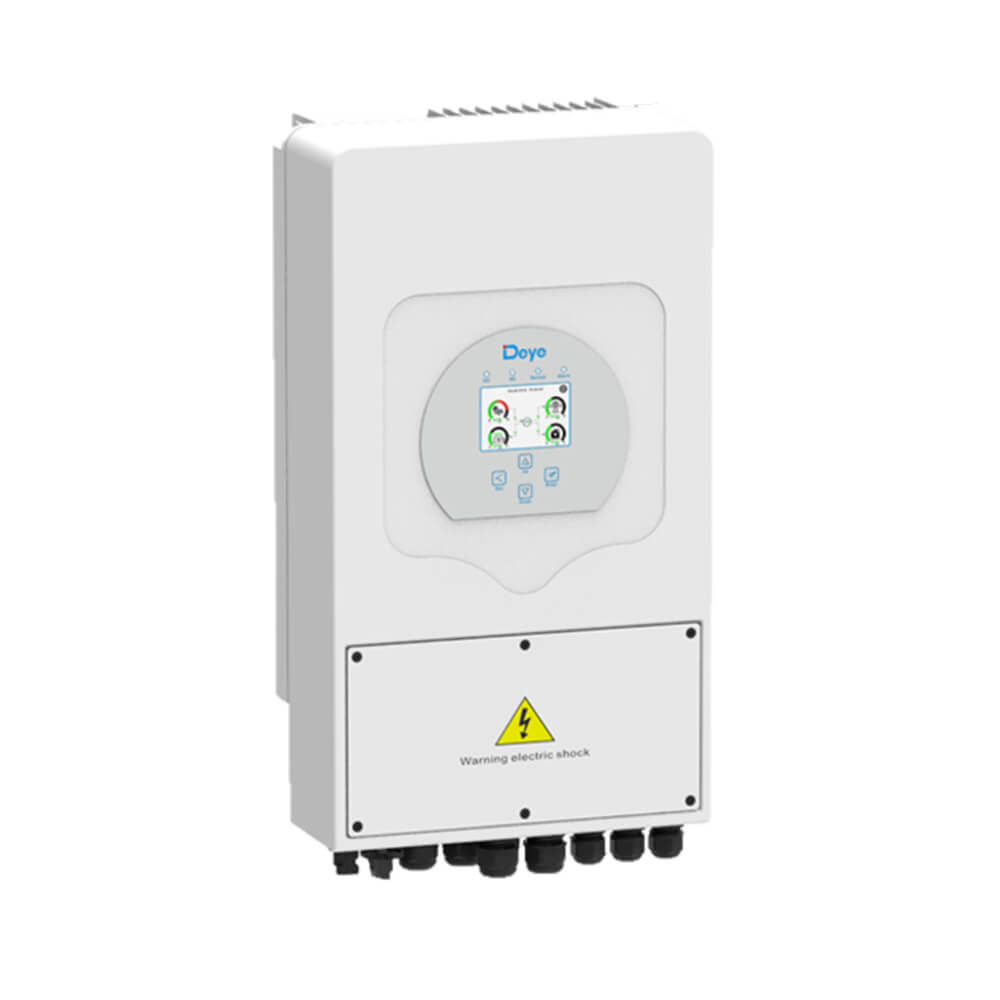

Sunsynk: 5.5Kw Single Phase Hybrid Inverter (SUNSYNK-5K-SG01LP1-EU)

Description General Data • Package Includes WIFI Dongle & Current Transformer • Max Efficiency of 97.6% • 2 MPPT (Maximum Power Point Tracker) • Operating Temperature Range: -25°C to 60°C • Cooling: Fan Cooled <30dB • Communication with BMS: RS485; CANBUS • Wall Mounted • Touchscreen Interface Description Battery Input Data • Battery Type: Lead-acid or Lithium-ion • Battery Voltage Range: 40V to 60V • Maximum Charging Current: 120A • Maximum Discharging Current: 120A • Charging Curve: 3 Stages / Equalization • Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS PV String Input Data • Maximum DC Input Power: 6500W • PV Input Voltage: 370V (100V ~ 500V) • MPPT Range: 125V ~ 425V • Full Load DC Voltage Range: 240V ~ 425V • Start-up Voltage: 150V • PV Input Current: 11A 11A • No. of MPPT Trackers: 2 • No. of Strings Per MPPT Tracker: 1 1 AC Output Data • Rated AC Output and UPS Power: 5000W • Maximum AC Power: 5500W • Peak Off-Grid Power: 2 times of rated power, 10 S • AC Output Rated Current: 21.7A • Maximum AC Output Current: 25A • Maximum Continuous AC Passthrough: 35A • Power Factor: 0.8 leading to 0.8 lagging • Output Frequency and Voltage: 50Hz/60Hz; 220VAC/230VAC/240VAC (Single Phase) • Grid Type: Single Phase
