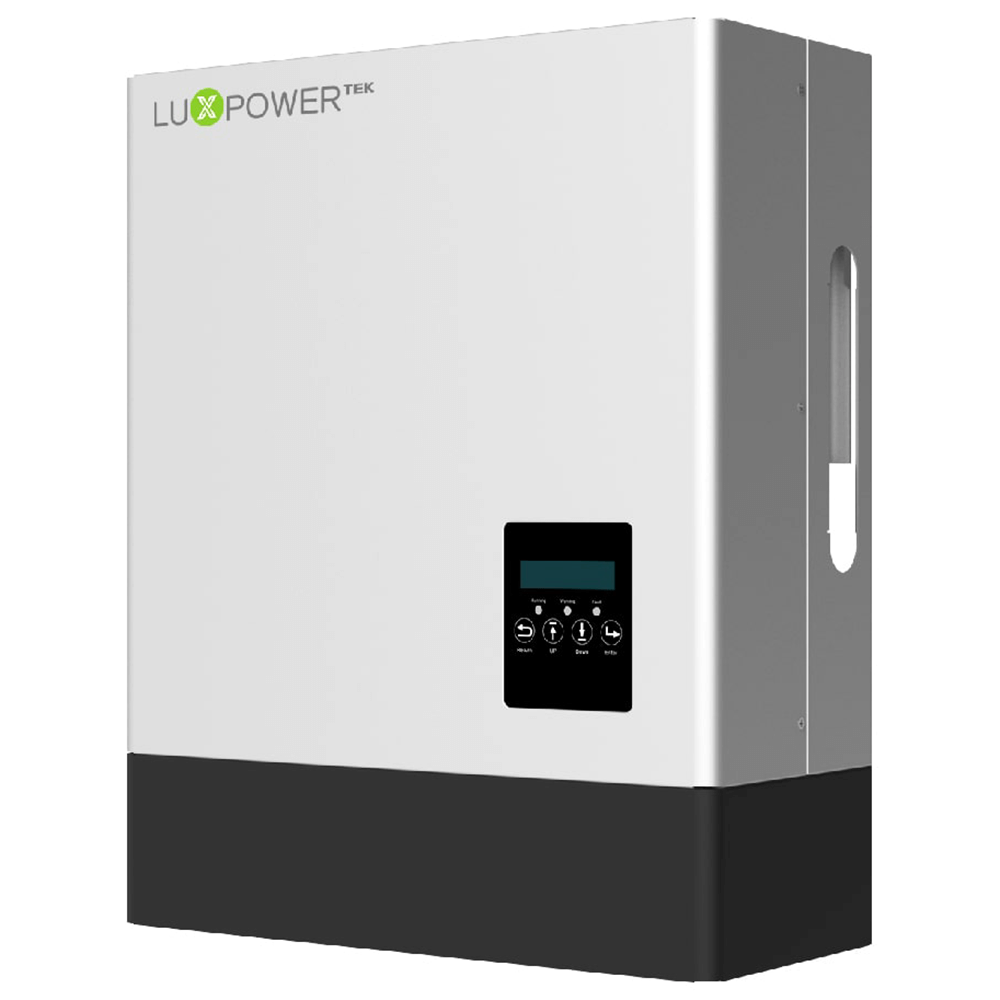

Lux Power: Inverter 5KW Hybrid LV Single Phase (LUX-LXP5K-LV)

$69.84 $119.43
Description General Data • Maximum Efficiency: 97.5% • Integrated DC Switch • Transformerless Design • Supports Paralleling Description Solar Input • Maximum DC Input Power: 8000W • Nominal DC Input Voltage: 360VDC • DC Input Voltage Range: 100VDC-550VDC • MPPT Voltage Range: 120VDC-500VDC • Start Voltage: 140VDC • Number of MPP Trackers: 2 • Maximum DC Input Current: 12.5A / 12.5A Battery Input / Output • Compatible Battery Type: Lithium-ion / Lead-Acid • Nominal Battery Voltage: 48VDC • Battery Voltage Range: 40VDC – 60VDC • Maximum Charge / Discharge Current: 80A / 80A • Maximum Charge / Discharge Power: 5000W / 5000W • Charging Curve: 3 Stages AC Input / Output • Nominal AC Output Power: 5000W • Nominal AC Output Current: 25A • Nominal AC Voltage: 230VAC (180VAC-270VAC) • Nominal AC Frequency: 50Hz / 60Hz (45Hz-55Hz / 55Hz-65Hz) • Power Factor: >0.99 @ Rated Power 0.8 Lagging – 0.8 Leading Adjustable Environment Limit • Ingress Protection: IP65 • Relative Humidity: 0% to 100% • Operating Temperature Range: -25°C to 60°C • Operating Altitude: <2000m • Communication: RS485 / WIFI / CAN
