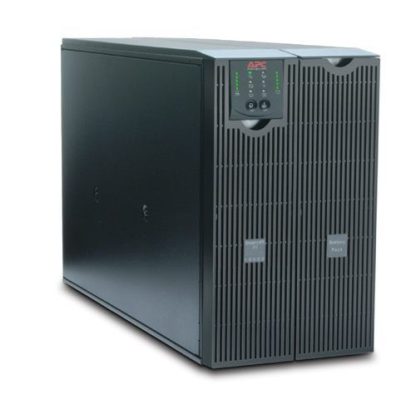

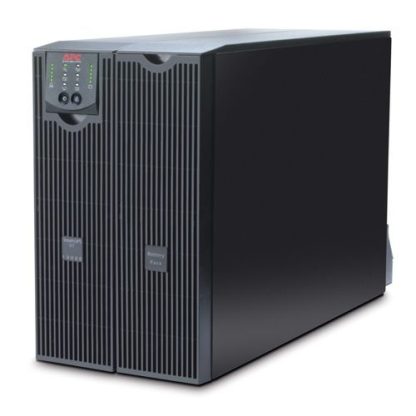

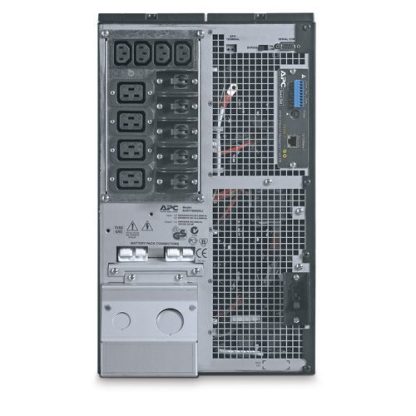

Description Overview Model Name APC Smart-UPS RT 10000VA 230V Output Output Power Capacity 8000 Watts / 10.0 kVA Max Configurable Power (Watts) 8000 Watts / 10.0 kVA Nominal Output Voltage 230V Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage Output Voltage Distortion Less than 3% Output Frequency (sync to mains) 50/60 Hz /- 3 Hz user adjustable /- 0.1 Other Output Voltages 220, 240V Crest Factor 3 : 1 Double Conversion Online Waveform Type Sine wave Output Connections (1) Hard Wire 3-wire (H N G) (Battery Backup) , (4) IEC 320 C13 (Battery Backup) , (4) IEC 320 C19 (Battery Backup) , (6) IEC Jumpers (Battery Backup) Bypass Internal Bypass (Automatic and Manual) Input Nominal Input Voltage 230V , 400 3PH Input Frequency 50/60 Hz /- 5 Hz (auto sensing) Input Connections Hard Wire 3 wire (1PH N G) , Hard Wire 5-wire (3PH N G) Input voltage range for main operations 160 – 280 V Other Input Voltages 220 , 240 Input Total Harmonic Distortion Less than 7% for full load Batteries & Runtime Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules 4 Typical recharge time 2 hour(s) Replacement Battery APCRBC140 RBC Quantity 2 Communications & Management Interface Port(s) DB-9 RS-232 , RJ-45 10/100 Base-T , Smart-Slot Pre-Installed SmartSlot™ Cards AP9631 Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Emergency Power Off (EPO) Yes Surge Protection and Filtering Surge energy rating 1265J Joules Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Physical Maximum Height 432.0 mm Maximum Width 263.0 mm Maximum Depth 736.0 mm Rack Height 6 U Net Weight 110.91 kg Shipping Weight 129.09 kg Shipping Height 552.0 mm Shipping Width 597.0 mm Shipping Depth 991.0 mm Color Black Units per Pallet 2.0 Environmental Operating Environment 0 – 40 °C Operating Relative Humidity 0 – 95% non-condensing % Operating Elevation 0-3000 meters Storage Temperature -15 – 45 °C Storage Relative Humidity 0 – 95% non-condensing % Storage Elevation 0-15000 meters Audible noise at 1 meter from surface of unit 55.000 dB Online Thermal Dissipation 2262.000 BTU/hr Protection Class IP 20 Conformance Approvals C-tick , CE , EN 50091-1 , EN 50091-2 , EN 55022 Class A , EN 60950 , EN 61000-3-2 , GOST , VDE Standard warranty 1 years repair or replace Sustainable Offer Status RoHS Compliant Other Environmental Compliance China RoHS
