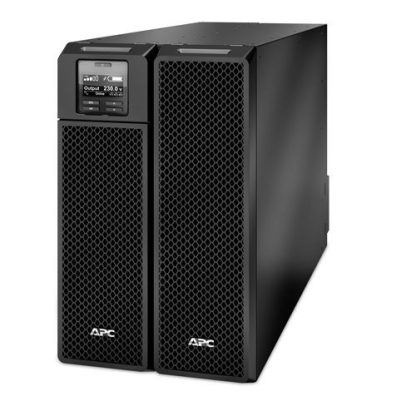

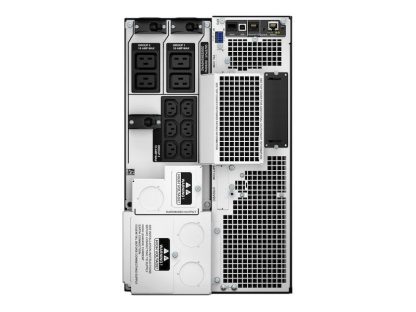

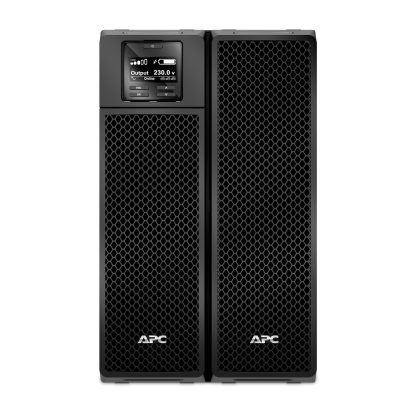

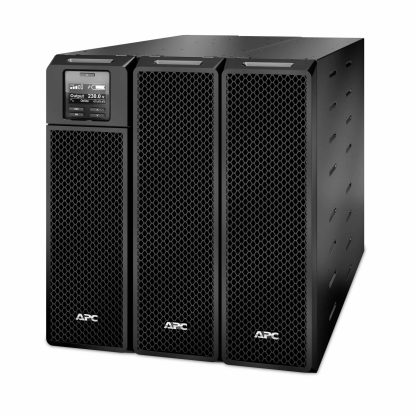

APC Smart-UPS SRT 10000VA 230V – SRT10KXLI

Description Output Power Capacity 10 kW / 10 kVA Max Configurable Power 10 kW / 10 kVA Nominal Output Voltage 230V Output Voltage Distortion Less than 3% Output Frequency (sync to mains) 50/60Hz /- 3 Hz Other Output Voltages 220, 240 Crest Factor 3 : 1 Topology Double Conversion Online Waveform Type Sine wave Output Connections (1) Hard Wire 3-wire (H N G) (6) IEC 320 C13 IEC 320 C13 (4) IEC 320 C19 IEC 320 C19 (3) IEC Jumpers Actual Weight 246.00 lb(s)     Connectivity Communication Interface: Ethernet, Serial (RS-232), USB     Contents UPS, temperature probe, USB cable, Web/SNMP management card, warranty card, CD with software, documentation CD, installation guide     General Color: Black Form Factor: External   Physical Dimensions 17″H x 10.35″W x 28.15″D   Ports/Connectors Communications & Management Interface Port(s): RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB Control panel: Multi-function LCD status and control console Audible Alarm: Audible and visible alarms prioritized by severity Emergency Power Off (EPO): Yes Available SmartSlot Interface Quantity: 1     Power Battery Run Time (max): 3.80 minute(s) Power Provided: 10 kW Surge Suppression: Standard     Power Notes Output Output power capacity: 10.0 KWatts / 10.0 kVA Max Configurable Power (Watts): 10.0 KWatts / 10.0 kVA Nominal Output Voltage: 230V Output Voltage Distortion: Less than 2% Output Frequency (sync to mains): 50/60Hz /- 3 Hz Other Output Voltages: 220, 240 Load Crest Factor: 3 : 1 Topology: Double Conversion Online Waveform type: Sine wave Output Connections: (6) IEC 320 C13 (Battery Backup) (4) IEC 320 C19 (Battery Backup) (1) Hard Wire 3-wire (H N G) (Battery Backup) (3) IEC Jumpers (Battery Backup) Bypass: Internal Bypass (Automatic and Manual)   Input Nominal Input Voltage: 230V, 400V 3PH Input frequency: 40 – 70 Hz (auto sensing) Input Connections: Hard Wire 3 wire (1PH N G), Hard Wire 5-wire (3PH N G) Input voltage range for main operations: 160 – 275V Input voltage adjustable range for mains operation: 100 – 275 (half load), 173 – 476 (half load)V Other Input Voltages: 220, 240, 380, 415   Batteries & Runtime Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Typical recharge time: 1.5hour(s) Replacement Battery: APCRBC140 Expected Battery Life (years): 3 – 5 RBC Quantity: 2 Extendable Run Time: 1   Surge Protection Surge energy rating: 480Joules Operating Environment: 32 – 104 °F ( 0 – 40 °C ) Operating Relative Humidity: 0 – 95 % Operating Elevation: 0-10000ft ( 0-3000meters ) Storage Temperature: -15 – 45 °C Storage Relative Humidity: 0 – 95% non-condensing % Storage Elevation: 0-50000ft ( 0-15000meters ) Audible noise at 1 meter from surface of unit: 55.0dBA Online thermal dissipation: 1947.0BTU/hr Protection Class: IP 20 Standards Compliant Standards: CE, EAC, EN 62040-1, EN 62040-2, Energy Star, IEC 62040-1, IEC 62040-2, IP20, IRAM, RCM, REACH, RoHS, VDE
