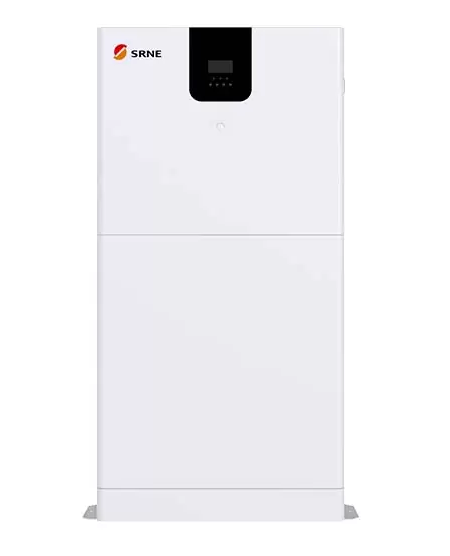

SRNE All In One (AIO) Inverter & Battery System

Description SRNE All In One (AIO) Inverter & Battery System • Package Model: SR-EOV24-5.0S-S1 • Long Life: 5000 Cycles @ 80% DOD • Easy To Install & Use • Multiple Working Modes • Fast & Flexible Charging • Scalability: Up to 4 Batteries In Parallel Battery Technical Specification • Battery Model: SR-EOV24-5.0A-E1 • Number Of Batteries: 1 • Battery Energy: 5.12KWH • Battery Capacity: 200AH • Weight: 100Kg • Dimension: 1190mmL x 600mmD x 184mmH • Battery Type: LiFePO4 • Battery Rated Voltage: 25.6V • Battery Working Voltage Range: 22.4VDC – 28.8VDC • Maximum Charging Current: 150A • Maximum Discharging Current: 150A • DOD: 80% • Designed Life Span: 5000 Cycles Inverter Technical Specification • Inverter Model: SR-EOV24-3.5S-C1 PV Charge • Solar Charge Type: MPPT • Maximum Input Power: 4000W • PV Charging Current Range: 0A-80A • PV Operating Voltage Range: 120VDC-500VDC • MPPT Voltage Range: 120VDC-450VDC AC Charge • Maximum Charge Power: 2240W • AC Charging Current Range: 0A-80A • Rated Input Voltage: 220VAC-230VAC • Input Voltage Range: 90VAC-280VAC AC Output • Rated Output Power: 3500W • Maximum Output Current: 30A • Frequency: 50Hz • Overload Current: 35A Battery Inverter Output • Rated Output Power: 3500W • Maximum Peak Power: 6000VA • Power Factor: 1 • Pated Output Voltage: 230VAC • Frequency: 50Hz • Auto Switch Period: <15ms Environment Limit • Communication: RS485 / CAN / WIFI • Charging Temperature Range: 0°C to 45°C • Discharging Temperature Range: -10°C to 45°C • Operation Humidity: 5% to 85% • Cooling Mode: Force-Air-Cooling @ 60bB • Ingress Protection: IP20 • Operation Environment: Indoor • Installation Method: Vertical • Safety Certification: UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
