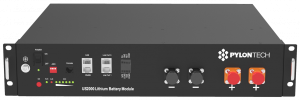

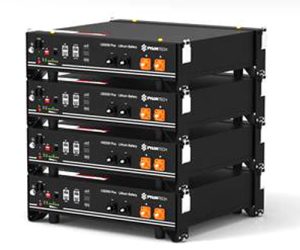

Description US2000 C Plus 48V 2,4KWh PYLONTECH Lithium battery The new US2000 C 48V 2,4KWh Lithium battery series is a perfect solution for residential storage facilities, with STANDARD 48v/50AH specification, up to 90% usable capacity and a 4.5000 life-span warranty. Features: Vertical industry integration guarantees more than 6000 cycles with 90% DoD Sleek, compact design fits your home environment Provides up to 5KW with a single 2.4 KWh module Modular design gives end-customers the ability to choose capacity Compatible with most of the hybrid inverters available. Easy fastening of the buckle that minimizes installation time and cost Specification BASIC PARAMETERS US2000 Nominal Nominal voltage (V) 48 Rated capacity WH capacity usable power (wh) 2400 2200 Physical Dimension (mm) 440 * 410 * 89 Weight (Kg) 24 Electric Discharge Voltage (V) 45 ~ 54 Charging Voltage (V) 52.5 ~ 54 Maximum discharge current (A) 5kW @ 15s Maximum charging current (A) 5kW @ 15s Other Communication RS232, RS485, CAN Load temperature 0 ℃ ~ 50 ℃ Discharge temperature -10 ℃ ~ 50 ℃ Shelf temperature -20 ℃ ~ 60 ℃ Process of giving a title TüV /CE/UN 38.3 Design Life 10 years (25 ℃ /77 ℉) Life cycle 4500 (90% DoD) Safety Cert.T-V, CE, UN38.3, TLC
