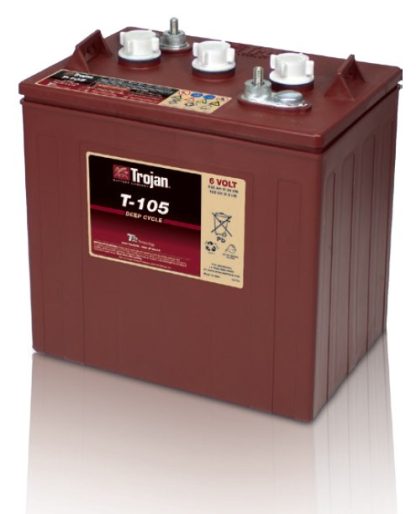

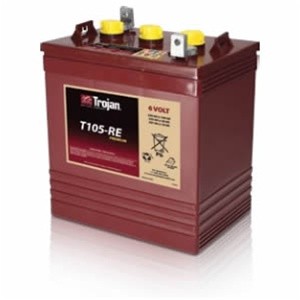

Description MODEL: T-105 RE with Bayonet Cap DIMENSIONS: inches (mm) BATTERY: Flooded/wet lead-acid battery COLOR: Maroon (case/cover) MATERIAL: Polypropylene PRODUCT SPECIFICATIONS BCI GROUP SIZE TYPE CAPACITY A Amp-Hours (AH) ENERGY (kWh) VOLTAGE TERMINAL Type D DIMENSIONS B Inches (mm) WEIGHT lbs. (kg)2-Hr Rate 5-Hr Rate 10-Hr Rate 20-Hr Rate 48-Hr Rate 72-Hr Rate 100-Hr Rate 100-Hr Rate Length Width Height C PREMIUM LINE – DEEP-CYCLE FLOODED BATTERIES GC2H T-105 RE 146 185 207 225 240 245 250 1.50 6 VOLT 5 10.30 (262) 7.11 (181) 11.67 (296) 67 (30) OPERATIONAL DATA OPERATING TEMPERATURE SPECIFIC GRAVITY -4°F to 113°F (-20°C to 45°C). At temperatures below 32°F (0°C) maintain a state of charge greater than 60%. The specific gravity at 100% state-ofcharge is 1.280 CHARGING INSTRUCTIONS Do not install or charge batteries in a sealed or non-ventilated compartment. Constant under or overcharging will damage the battery and shorten its life as with any battery. CHARGER VOLTAGE SETTINGS (AT 77°F/25°C) Voltage per cell Absorption charge 2.35-2.45 Float charge 2.20 Equalize charge 2.58 EXPECTED LIFE VS. TEMPERATURE Chemical reactions internal to the battery are driven by voltage and temperature. The higher the battery temperature, the faster chemical reactions will occur. While higher temperatures can provide improved discharge performance the increased rate of chemical reactions will result in a corresponding loss of battery life. As a rule of thumb, for every 10°C increase in temperature the reaction rate doubles. Thus, a month of operation at 35°C is equivalent in battery life to two months at 25°C. Heat is an enemy of all lead acid batteries, FLA, AGM and gel alike and even small increases in temperature will have a major influence on battery life. Made in the USA
