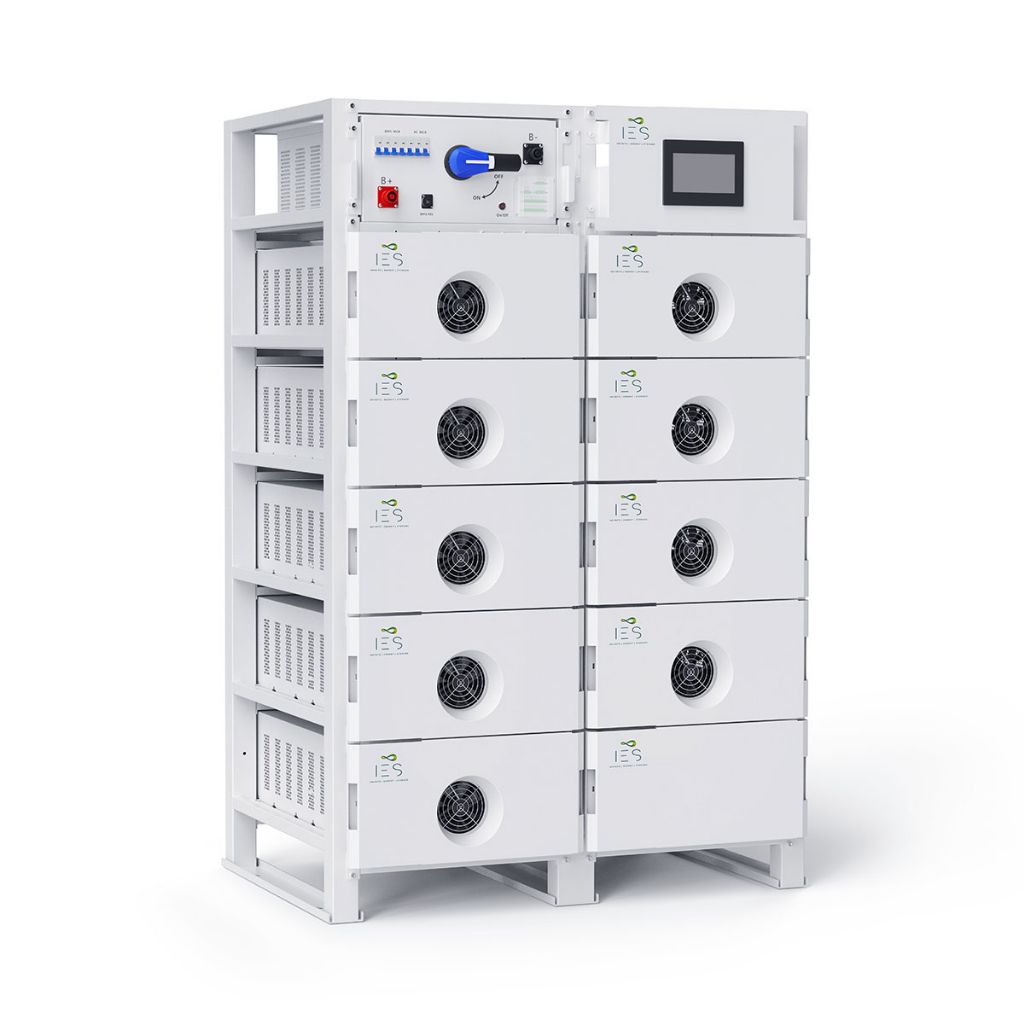

Overview Indoor battery rack with IP20 protection level, inbuild lithium-ion battery and BMS. Easy Installation And Maintenance Local and remote management, standard rack & module design, front maintenance. Safety & Reliable Self-developed 2-level / 3-level BMS, complex protection, safe and reliable. High Density LP high-capacity Li-ion battery with aluminum shell, over 130wh/kg. Long Lifespan Long cycle life, 8000 cycles. Cell Balancing Technology MODEL IES-BATT-129R Performance Battery module (Wh/V) 14.336 kWh, 51.2V, 110kg Number of modules 9 Cell technology LFP (LiFePO4) Battery usable energy [1] 129.024 kWh Nominal Voltage 460.8V Operating Voltage 410.4 – 505.44V Nominal Output Current 140 A / 280 A Communication Display SOC status indicator, LED indicator, LCD display Communications Ethernet / CAN / RS485 General Specification Dimension (w*d*h) 1164 x 840 x 1776mm Weight 1240 kg Operating Temperature [2] -20 to 60 °C Environmental humidity ≤ 95%RH (no condensation) Protection Rating IP20 Cycle Life [3] 8000 Cycles @ 80% DOD / 25°C / 0.5C, 70% EOL Scalability Yes Application ON Grid / ON Grid Backup / OFF Grid Compatible PCS Refer to compatible PCS list Standard Compliance Certificates Cell: UN38.3 / IEC62619 / UL 1642 / JET Pack: UN38.3 / IEC62619 / IEC61000 System: UL 9540 (More available upon request) Ordering and Deliverable Part Part IES-BATT-14.3P-F-QC IES-BCU-M-129H1-QC IES-R12 [1] Test conditions: 100% depth of discharge (DoD), 0.2C rate charge & discharge at 25°C. [2] Charge/discharge derating occurs when the operating temperature from -10°C to 5°C .& 45°C to 55°C. [3] Please refer to the Warranty Letter for applicable conditions. IES-BATT-129R-V0.0.1-DatasheetIES-BATT-129RkWh-V0.27-Installation-Manual SKU: IES-BATT-128R Category: IES
