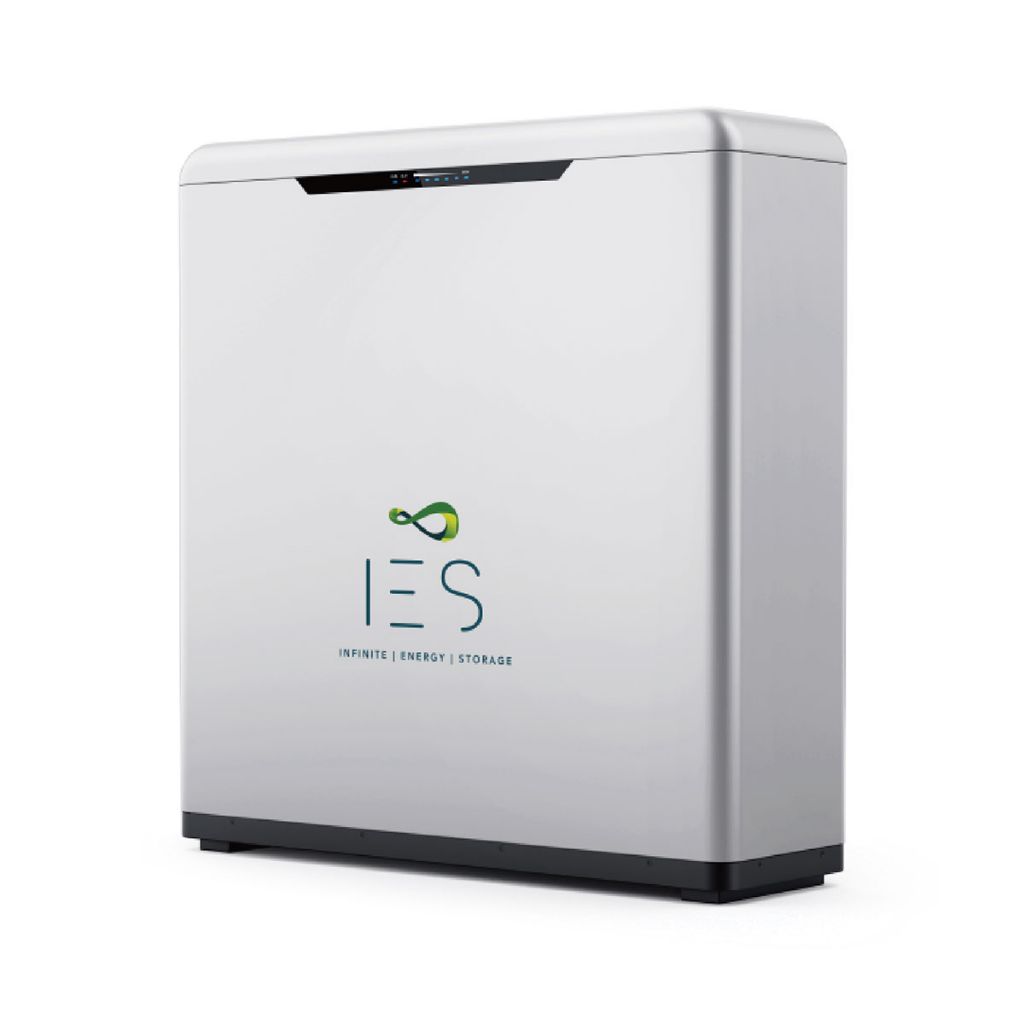

MODEL IES-BATT-14.33 Performance Cell technology LFP (LiFePO4) Battery usable energy [1] 14.33 kWh Nominal Voltage 51.2 V Operating Voltage 44.8 – 56.16 V Nominal Output Current 140 A / 280 A BMS protection current 300 A 1 S Parallel Up to x 3 Communication Display SOC status indicator, LED indicator, LCD display Communications CAN / RS485 / RS232 / Wi-Fi (optional) General Specification Dimension (w*d*h) 800x250x839mm Weight 145 kg Installation Floor stand or Wall mounted Operating Temperature [2] -20 to 60 °C Environmental humidity ≤ 95%RH (no condensation) Protection Rating IP20 Cycle Life [3] 8000 Cycles or ten (10) years @ 80% DOD / 25°C / 0.5C, 70% EOL Scalability Max 15 batteries in parallel Application ON Grid / ON Grid Backup / OFF Grid Compatible PCS Refer to compatible inverter list Standard Compliance Certificates Cell: UN38.3 / IEC62619 / UL 1642 / JET Pack: UN38.3 / IEC62619 / IEC61000 / UKCA (More available upon request) Ordering and Deliverable Part Part IES-BATT-14.33 IES-BATT-14.33 Parallel cable IES-BATT-14.33 to PCS cable [1] Test conditions: 100% depth of discharge (DoD), 0.2C rate charge & discharge at 25°C [2] Charge/discharge derating occurs when the operating temperature from -10°C to 5°C .& 45°C to 55°C [3] Please refer to the Warranty Letter for applicable conditions, the warranty is due whichever comes first. KOOL-ENERGY-2kW-24v-ITnerfricaShopIES-BATT-14.33-UserManual-V11-09.20 SKU: IES-BATT-14.33 Category: IES
