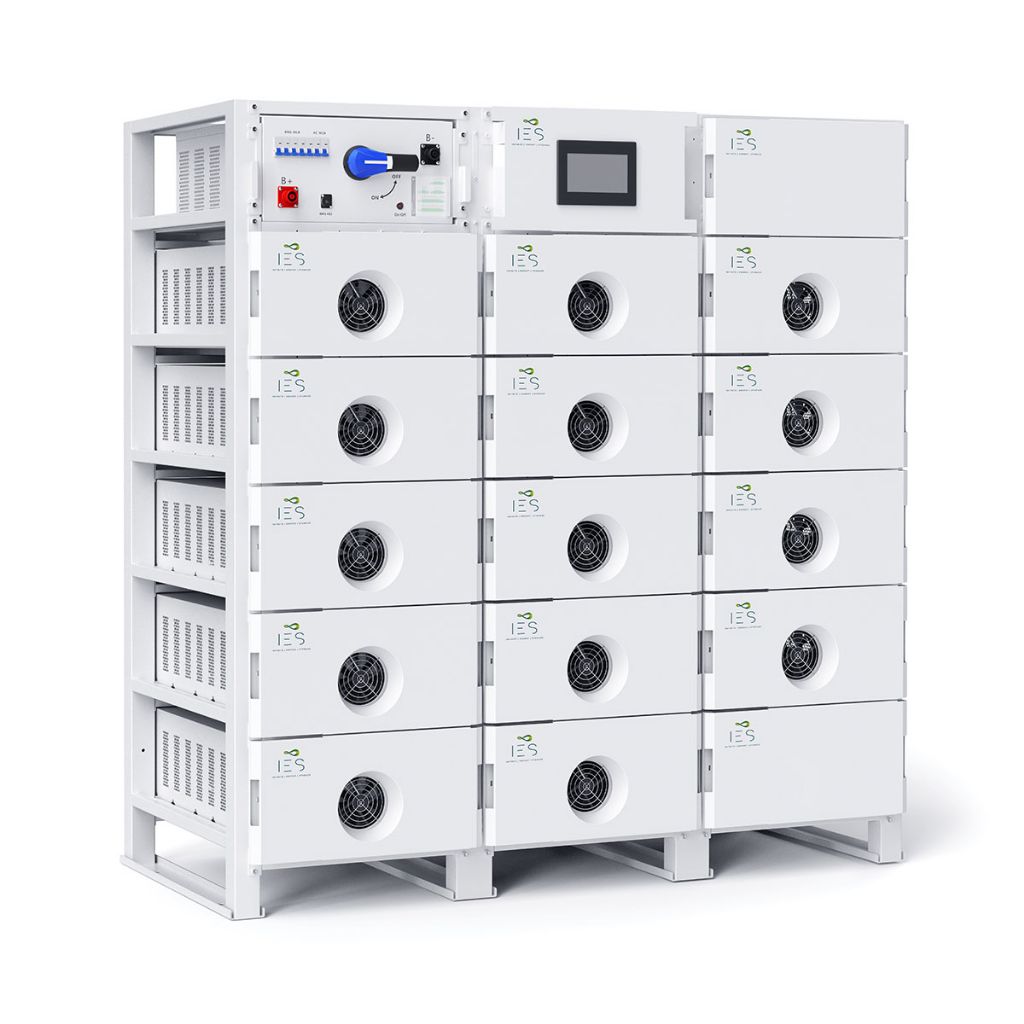

MODEL IES-BATT-200R Performance Battery module (Wh/V) 14.336 kWh, 51.2V, 110kg Number of modules 14 Cell technology LFP (LiFePO4) Battery usable energy [1] 200.704 kWh Nominal Voltage 716.8 V Operating Voltage 627.2 – 786.24 V Nominal Output Current 140 A / 280 A Communication Display SOC status indicator, LED indicator, LCD display Communications Ethernet / CAN / RS485 General Specification Dimension (w*d*h) 1721 x 840 x 1776mm Weight 1870 kg Operating Temperature [2] -20 to 60 °C Environmental humidity ≤ 95%RH (no condensation) Protection Rating IP20 Cycle Life [3] 8000 Cycles or ten (10) years @ 80% DOD / 25°C / 0.5C, 70% EOL Scalability Yes Application ON Grid / ON Grid Backup / OFF Grid Compatible PCS Refer to compatible PCS list Standard Compliance Certificates Cell: UN38.3 / IEC62619 / UL 1642 / JET Pack: UN38.3 / IEC62619 / IEC61000 Ordering and Deliverable Part Part IES-BATT-14.3P-F-QC IES-BCU-M-200H1-QC IES-R18 [1] Test conditions: 100% depth of discharge (DoD), 0.2C rate charge & discharge at 25°C. [2] Charge/discharge derating occurs when the operating temperature from -10°C to 5°C .& 45°C to 55°C. [3] Please refer to the Warranty Letter for applicable conditions. IES-BATT-200R-V03-2024.03.13BIES-BATT-200RkWh-V39-2024.03.08B-mini Category: IES
