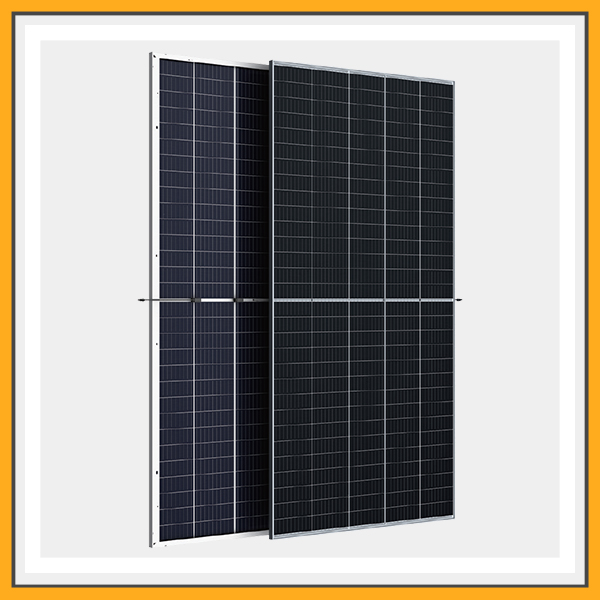

DescriptionTrina 485W Bifacial TSM-DEG18MC.20(II) DISCRIPTON : 485W High Power with 20.6% High EfficiencyBased on the high volume 158mm third-cut monocrystalline PERC cells, the Duomax Twin module contains several innovative design features allowing high power output of more than 485W. Excellent temperature coefficients and low irradiation performance combined with square mono cells and the MBB technology enables modules efficiency up to 20.6%The 2mm AR coated glass layers and custom frame design enables ease-of-use and compatibility with standard installation methods for utility and C&I applications.Electrical Characteristics（STC）TSM-DEG18MC.20(II)-485wMaximum Power – Pmax(W)485Voltage at Pmax-Vmp(V)42.8Current at Pmax-Imp(A)11.45Open Circuit Voltage – Voc(V)51.1Short Circuit Current – Isc(A)12.05Module Efficiency- ηm(%)20.10%Electrical Characteristics（NOCT）TSM-DEG18MC.20(II)-485wMaximum Power – Pmax(W)519Voltage at Pmax-Vmp(V)42.5Current at Pmax-Imp(A)12.22Open Circuit Voltage – Voc(V)50.9Short Circuit Current – Isc(A)12.85Temperature CharacteristicsPmax Temperature Coefficient-0.35%/℃Voc Temperature Coefficient-0.25%/℃Isc Temperature Coefficient 0.04%/℃Operating Temperature-40℃-85℃Nominal Operating Cell Temperature (NOCT)41±3℃Mechanical SpecificationsExternal Dimensions2187*1102*35 mm (86.10*43.39*1.38 inches)Weight30.1 kg (66.4 lb)Solar CellsMonocrystallineJunction BoxIP 68 ratedOutput Cables35mm(1.38 inches) Anodized Aluminium AlloyCable lengthPhotovoltaic Technology Cable 4.0mm2 (0.006 inches2), Portrait: 280/280 mm(11.02/11.02 inches) Landscape: 2000/2000 mm(78.74/78.74 inches)ConnectorMC4 EVO2 / TS4*Mechanical Load2400pa／5400 PaPower Tolerance (W)(0, 5)Maximum System Voltage(V)1500Maximum Series Fuse Rating(A)25
