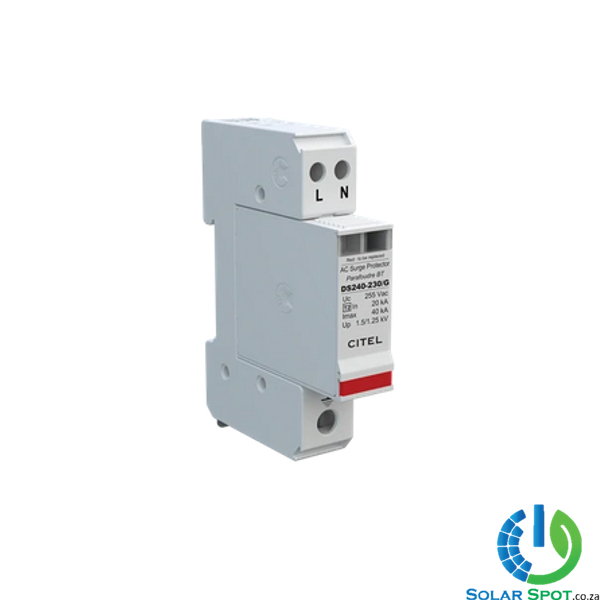

Citel DS240S-230/G SPD Compact single-phase Type 2, 20 kA

The DS240 Type 2 surge protectors are compact devices designed to protect single phase networks at the main switchboard. They provide a common or common/differential mode protection. This SPD is based on high energy varistor equipped with thermal disconnectors and failure indicator to comply with standards. The DS240 is DIN rail compatible and is built with a plug-in module and fixed base, which allows an easy and fast maintenance. * SPD type 2 * Network 230 V single-phase * Nominal line voltage 230V AC * Max. AC operating voltage L-N 255V AC * Nominal discharge current 20 kA * Temporary Over Voltage (TOV) Charasteristics – 5 sec. 335V AC withstand *Temporary Over Voltage (TOV) Charasteristics – 120 mn 440V AC disconnection * Temporary Over Voltage N/PE (TOV HT) 1200 V / 300A / 200 ms withstand * Residual Current None * Operating current 0.5 mA * Follow current None
