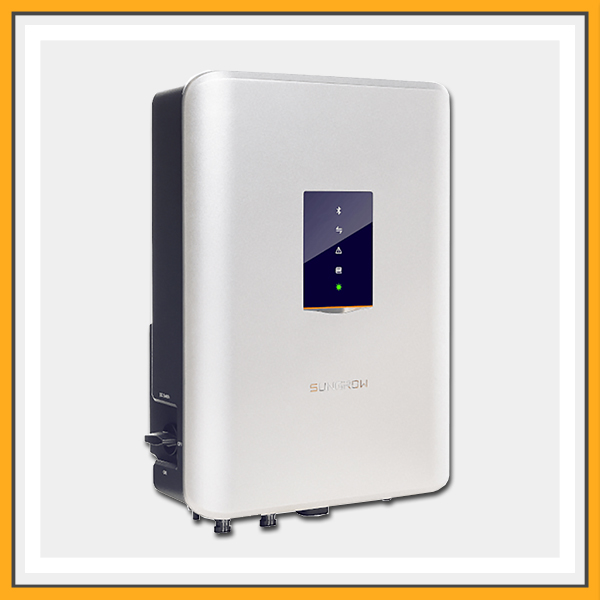

DescriptionSungrow 10kw SG10KTL-M/SG12KTL-M SPECIFICATION :Input (DC)SG10KTL-MSG12KTL-MMax. PV input voltage1100 VMax. PV input voltage / Startup voltage200 V / 250 VNominal input voltage600 VMPP voltage range200 – 950 VMPP voltage range for nominal power470 – 850 V550 – 850 VNo. of MPPTs2Max. number of PV strings per MPPT1Max. PV input current22 A (11 A / 11 A)Max. current for input connector12 AMax. DC short-circuit current24 A (12 A / 12 A )Output (AC)Nominal AC power (at 45˚C)10000 W12000 WMax. AC output at PF=1 (at 45 ˚C)10000 W12000 WMax. AC apparent power (at 45 ˚C)10000 VA12000 VAMax. AC output current15 A18 ANominal AC voltage3 / N / PE, 230 / 400 VAC voltage range270 – 480 VNominal grid frequency / Grid frequency range50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 HzTHD< 3 % (at nominal power)DC current injection< 0.5 % InPower factor at nominal powe / Adjustable power factor> 0.99 / 0.8 leading – 0.8 laggingFeed-in phases / Connection phases3 / 3EfficiencyMax. efficiency / Euro. efficiency98.6 % / 98.1 %ProtectionDC reverse connection protectionYesAC short-circuit protectionYesLeakage current protectionYesGrid monitoringYesDC switch / AC switchYes / NoDC fuseNoPV string current monitoringYesOvervoltage protectionDC Type III / AC Type IIIGeneral DataDimensions (W*H*D)370*485*160 mmWeight20 kgIsolation methodTransformerlessDegree of protectionIP65Night power consumption< 2 WOperating ambient temperature range-25 to 60 ℃ (> 45℃ derating)Allowable relative humidity range (non-condensing)0 – 100%Cooling methodNatural coolingMax. operating altitude4000 m (> 3000 m derating)Display / CommunicationLED, Bluetooth APP / RS485DC connection typeMC4 (Max. 6 mm² )AC connection typePlug and play connector (Max. 6 mm² )ComplianceCE, VDE0126-1-1/4105, EN62109-1/-2, G59/3Grid supportActive & reactive power control and power ramp rate controlType designationSG10KTL-M-10SG12KTL-M-10
