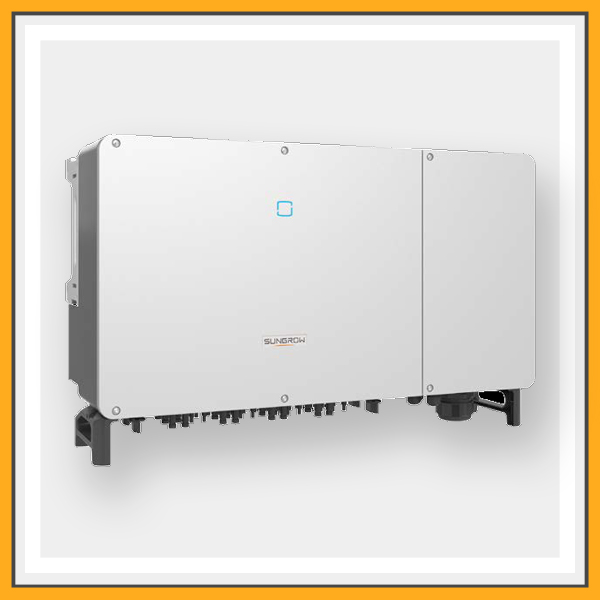

DescriptionSungrow 110kw SG110CX SPECIFICATION :Input (DC)SG110CXMax. PV input voltage1100 VMax. PV input voltage / Startup voltage200 V / 250 VNominal input voltage585 VMPP voltage range200 – 1000 VMPP voltage range for nominal power550 – 850VNo. of MPPTs9Max. number of PV strings per MPPT2Max. PV input current26 A * 9Max. current for input connector30 AMax. DC short-circuit current40 A * 9Output (AC)Max. AC apparent power (at 45 ˚C)110 kVA @ 45 ℃ / 100 kVA @ 50 ℃Max. AC output current158.8 ANominal AC voltage3 / N / PE, 400 VAC voltage range320 – 460 VNominal grid frequency / Grid frequency range50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 HzTHD< 3 % (at nominal power)DC current injection< 0.5 % InPower factor at nominal powe / Adjustable power factor> 0.99 / 0.8 leading – 0.8 laggingFeed-in phases / Connection phases3 / 3EfficiencyMax. efficiency / Euro. efficiency98.7% / 98.5%ProtectionDC reverse connection protectionYesAC short-circuit protectionYesLeakage current protectionYesGrid monitoringYesDC switch / AC switchYes / NoDC fuseNoPV string current monitoringYesOvervoltage protectionDC Type III / AC Type IIIGeneral DataDimensions (W*H*D)1051*660*362.5 mmWeight85 kgIsolation methodTransformerlessDegree of protectionIP66Night power consumption< 2 WOperating ambient temperature range-30 to 60 ℃ (> 45℃ derating)Allowable relative humidity range (non-condensing)0 – 100%Cooling methodSmart forced air coolingMax. operating altitude4000 m (> 3000 m derating)Display / CommunicationLED, Bluetooth APP / RS485DC connection typeMC4 (Max. 6 mm² )AC connection typeOT or DT terminal (Max.70 mm²)ComplianceIEC 62109, IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4105:2018, VDE-AR-N 4110:2018, IEC 61000-6-3, EN 50438, AS/NZS 4777.2:2015 , CEI 0-21, VDEGrid support0126-1-1/A1 VFR 2014, UTE C15-712-1:2013, DEWA Q at night function, LVRT, HVRT,active & reactive power control and power ramp rate control
