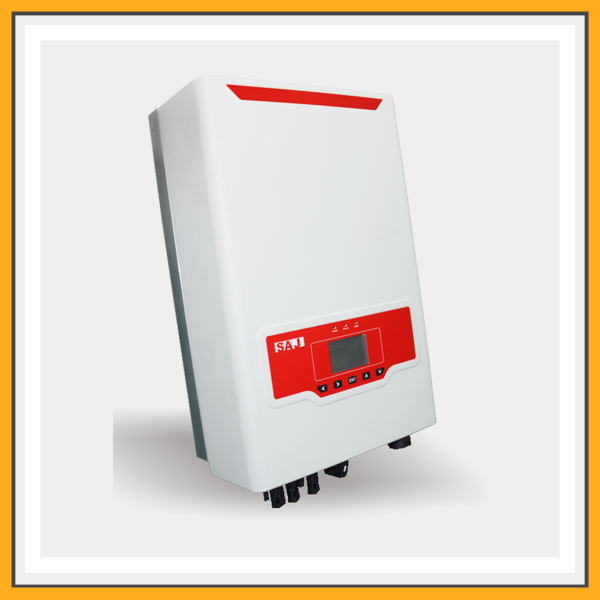

DescriptionSAJ 5KW Suntrio Plus Small three-phase PV grid-connected inverters are mainly used in residential PV grid-connected systems, to convert PV DC current to AC current for use in residential electrical equipment or for sale to the power grid. Suntrio Plus Series 4K, 5K, 6K, 8K & 10K Grid-connected Inverters are the preferred inverters for residential PV investment because of their small size, light weight, high efficiency, easy installation, and reliability.. SPECIFICATION ModelSuntrio plus 5kMax DC Input Power6050Max DC Input Voltage1000vMPPT Range160 ~ 900vNominal DC Voltage [V]600Start Voltage [V]180Min. DC Voltage [V]150Max. DC Input Current PV1/PV2 [A]11/11Number of DC Connections Sets per MPPT1/1DC SwitchIntegratedRated AC Power [VA] (@230V,50Hz)5000Max. AC Apparent Power [VA]5000Rated AC Current [A]7.2Nominal AC Voltage / Range3/N/PE, 220/380V, 230/400V, 240/415V; 180V-280V/312V-485VGrid Frequency / Range50Hz,60Hz/44Hz-55Hz, 54Hz-65HzPower Factor, Adjustable [cos φ]0.9 leading ~ 0.9 laggingTotal Harmonic Distortion [THDi]<3% (at Nominal Power)Feed-in-Phase / Connection Phase3/3Max. Efficiency97.8%Euro Efficiency (at 600Vdc)97.2%MPPT Accuracy>99.5� ConnectionMC4/H4AC ConnectionPlug-in-ConnectorLCD Display3.5 inch Graphic LCD Display, Backlight, Inverter Parameter and Data DisplayDisplay LanguageMulti LanguageDatalogger and Communication1*RS485/1*RS232/Wifi (Optional)TopologyTransformerlessConsumption at Night [W]<0.6Consumption at Standby [W]<10Operating Temperature Range-25°C to 60°C (45°C to 60°C with Derating)Cooling MethodNatural ConventionAmbient Humidity0% – 100% Non-condencingAltitudeUp to 2000m (without power derating)Noise(DBA)<29Ingress ProtectionIP65 (Indoor and Outdoor installation)MountingRear PanelDimensions (H*W*D) [mm]530*355*190Net Weight [kg]20.5Standard Warranty [year]5 (standard) 10/15/20/25 (Optional)CertificatesIEC62109-1/2, IEC61000-6-2/3, IEC61683, IEC60068-2, IEC62116, IEC61717, PEA/MEA, NRS 097-2-1, UTE-C-15-712-1, VDEO126-1-1/A1, VDE-AR-N 4105, AS4777.3, C-TICK CQC NB/T 32004, G83-2, NBR 16149, NBR16150, TF 3.2.1, C10/11
