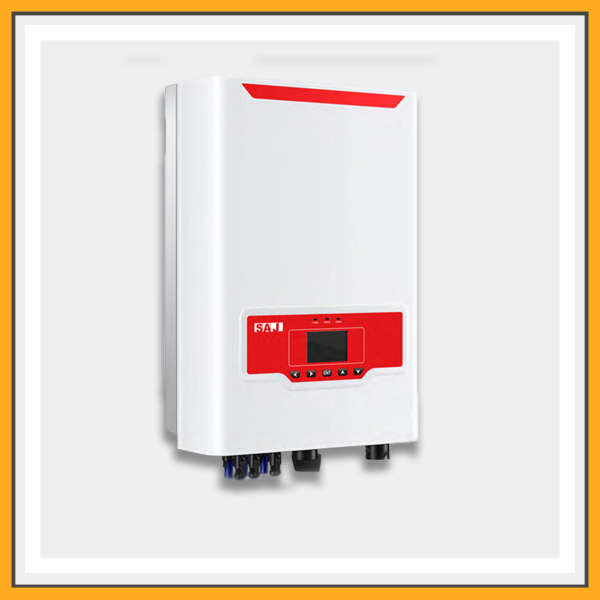

DescriptionSununo Plus 5K-M On-Grid Single Phase Inverter Single-phase PV grid-connected inverters are mainly used in residential PV grid-connected systems, to convert PV DC current to AC current for use in residential electrical equipment or for sale to the power grid. Sununo Plus Series 3K-M, 4K-M, 5K-M & 6K-M Grid-connected Inverters are the preferred inverters for residential PV investment because of their small size, light weight, high efficiency, easy installation, and reliability. SPECIFICATION ModelSununo Plus 5k (SUN-5)Max DC Input Power6050Max DC Input Voltage600vMPPT Range90 ~ 550vNominal DC Voltage [V]360Start Voltage [V]100Min. DC Voltage [V]80Max. DC Input Current PV1/PV2 [A]11/11Number of MPPT2Number of DC Connections Sets per MPPT1/1DC SwitchIntegratedRated AC Power [VA] (@230V,50Hz)46003/5000Max. AC Apparent Power [VA]4600/5000Rated AC Current [A]20.0/21.7Max. AC Current [A]22.2/25.0Nominal AC Voltage / Range220V, 230V, 240V/180V-280VGrid Frequency / Range50Hz, 60Hz/±5HzPower Factor, Adjustable [cos φ]0.9 leading ~ 0.9 laggingTotal Harmonic Distortion [THDi]<3% (at Nominal Power)Feed-in-Phase / Connection Phase3L N PEMax. Efficiency97.9%Euro Efficiency (at 600Vdc)97.5%MPPT Accuracy>99.5� ConnectionMC4/H4AC ConnectionPlug-in ConnectorLCD DisplayLCD (16×2 Characters, Backlight) / LED (3 Lights)Display LanguageEnglish LanguageDatalogger and CommunicationRS232 / Wifi (Optional)TopologyTransformerlessConsumption at Night [W]<0.2Consumption at Standby [W]<6Operating Temperature Range-25°C to 60°C (45°C to 60°C with Derating)Cooling MethodNatural ConvectionAmbient Humidity0% – 100% Non-condencingAltitude Up to 2000 m (without power derating)Noise(DBA)<25Ingress ProtectionIP65 (Indoor and Outdoor installation)MountingRear PanelDimensions (H*W*D) [mm]454*355*150Net Weight [kg]14.8Standard Warranty [year]5 (standard) 10/15/20/25 (Optional)CertificatesIEC62109-1/2, IEC61000-6-2/3, IEC61683, IEC60068-2, IEC62116, IEC61717, PEA/MEA, NRS 097-2-1, UTE-C-15-712-1, VDEO126-1-1/A1, VDE-AR-N 4105, AS4777.3, C-TICK CQC NB/T 32004, G83-2, NBR 16149, NBR16150, TF 3.2.1, C10/11
