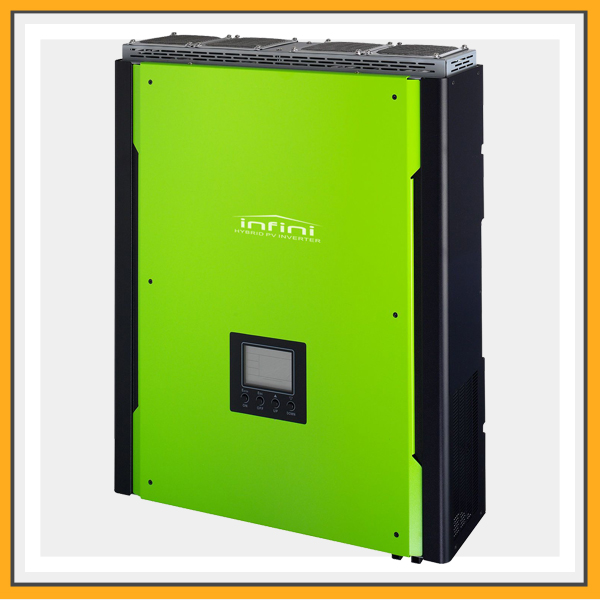

DescriptionINFINISOLAR PLUS 5KWInfiniSolar is a hybrid inverter which combines solar system, AC utility, and battery power source to supply continuous power. It is suitable for the remote areas where the cost of utility is too high or emergency usage when utility is not stable. ModelINFINISOLAR PLUS 5KWPHASE1-phase in / 1-phase outMAXIMUM PV ARRAY POWER10000 WRATED OUTPUT POWER5000 WMaximum DC Voltage720 VDC / 900 VDCStart-up Voltage225 VDC / 250 VDCMPPT Voltage Range250 VDC ~ 850 VDCNominal Voltage208/220/230/240 VACFull ProtectionOver-voltage, under-voltage, over-current, surge, over-temperature, short circuit protectionDimension, D x W x H (mm)204.2 x 460 x 600Net Weight (kgs)29
