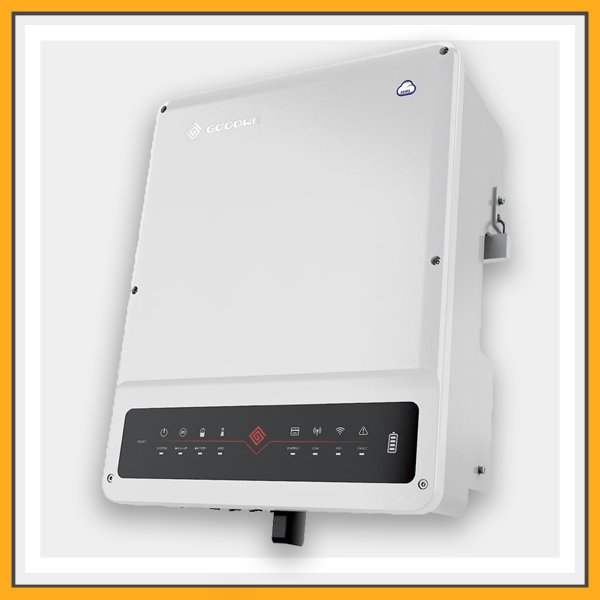

DescriptionGoodWe GW5K-ET Three Phase Hybrid Inverter (HV Battery)The brand new ET Series, from GoodWe, is a three-phase high voltage energy storage inverter that enables enhanced energy independence and maximizes self-consumption through an export limit feature and time of use shifts for reduced electric bills. Covering a power range of 5 kW, 8 kW and 10 kW, the ET Series allows up to 10% overloading to maximize power output and features Uninterruptible Power Supply Function (UPS) to inductive loads such as air conditioners or refrigerators with an automatic switchover time of less than 10 milliseconds, providing savings when the grid is up and independence and security when it is down or compromised.ModelGW5K-ETBattery Input DataBattery TypeLi-IonBattery Voltage Range (V)180~600Max. Charging Current (A)25Max. Discharging Current (A)25Charging Strategy for Li-Ion BatterySelf-adaption to BMSPV String Input DataMax. DC Input Power (W)6500Max. DC Input Voltage (V)*11000MPPT Range (V)*2200~850Start-up Voltage (V)180MPPT Range for Full Load (V)*3240~850Nominal DC Input Voltage (V)*4620Max. Input Current (A)12.5/12.5Max. Short Current (A)15.2/15.2No. of MPP Trackers2No. of Strings per MPP Tracker1/1AC Output Data (On-grid)Nominal Apparent Power Output to Utility Grid (VA)5000Max. Apparent Power Output to Utility Grid (VA)*55500Max. Apparent Power from Utility Grid(VA)10000Nominal Output Voltage (V)400/380, 3L/N/PENominal Output Freqency (Hz)50/60Max. AC Current Output to Utility Grid (A)8.5Max. AC Current From Utility Grid (A)32Output Power Factor~1(Adjustable from 0.8 leading to 0.8 lagging)Output THDi (@Nominal Output)<3� Output Data (Back-up)Max. Output Apparent Power (VA)5000Peak Output Apparent Power (VA)*610000, 60secMax. Output Current (A)8.5Nominal Output Voltage (V)400/380Nominal Output Freqency (Hz)50/60Output THDv (@Linear Load)<3�ficiencyMax. Efficiency98.0%Max. Battery to Load Efficiency97.5%Euro Efficiency97.2%MPPT Efficiency99.9%ProtectionAnti-islanding ProtectionIntegratedPV String Input Reverse Polarity ProtectionIntegratedInsulation Resistor DetectionIntegratedResidual Current Monitoring UnitIntegratedOutput Over Current ProtectionIntegratedOutput Short ProtectionIntegratedBattery Input Reverse Polarity ProtectionIntegratedOutput Over Voltage ProtectionIntegratedGeneral DataOperating Temperature Range (°C)-35~60Relative Humidity0~95%Operating Altitude (m)≤4000CoolingNatural ConvectionNoise (dB)<30User InterfaceLED & APPCommunication with BMSRS485; CANCommunication with MeterRS485Communication with EMSRS485 (Insulated)Communication with PortalWi-FiWeight (kg)24Size (Width*Height*Depth mm)516*415*180MountingWall BracketProtection DegreeIP65Standby Self Consumption (W)*7TopologyTransformerlessCertifications & StandardsGrid RegulationCEI 0-21; VDE4105-AR-N; VDE0126-1-1; EN50438; G83/2; G100Safety RegulationIEC62109-1&2EMCEN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4, EN61000-4-16, EN61000-4-18, EN61000-4-29
