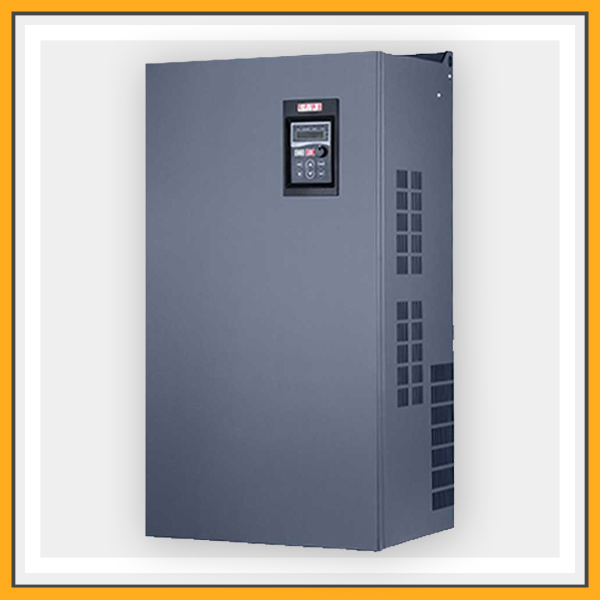

DescriptionSAJ 11KW Solar Pump Inverter The SAJ Solar Pump Controller is based on a standard platform controlling a standard 3-Phase asynchronous motor driving a pump powered by a solar array on an option AC generator backup. The SAJ solar controller continuously monitors system performance and incorporates a number of features for pumping system protection in the event of a fault, the SAJ solar pumping system is optimzed for pumping under adverse input power conditions unique to solar arrays. internal diagnostics will tolerate a lower input voltage. Whenever possible, the controller attemps to drive the pump load by maximizing power output from the solar array. SAJ series remote system monitoring a LED display provides a detailed indication of system status.Description ModelPDS33-4T011Max Input Voltage(Voc) [V]800V DCRecommended Voltage, at MPPT500V DC – 700V DCPV Array Power [kW]13.2~17.6Nominal DC Voltage [V]360Input Voltage380V AC(±15%), Three PhaseMax Amps(RMS) [A]26Power and VA capability [kVA]17Output Power, rated [kW]11Output Voltage, rated380V AC(±15%), Three PhaseMax Amps(RMS) [A]25Output Frequency0-50Hz/60HzCommunication portStandard isolater RS-485, Modbus protocolAmbient Temperature Range-20℃~60℃, >45℃,Derating as requiredCooling MethodFan CoolingAmbient Humidity≤ 95%RH 5Dimensions(H*W*D) [mm]360.5*182*195.4Gross Weight [kg]9.0Standard Warranty [month]18CertificatesIEC/EN 61800-5-1,IEC/EN 61800-2:2004,IEC/EN 61800-3:2004,CE
