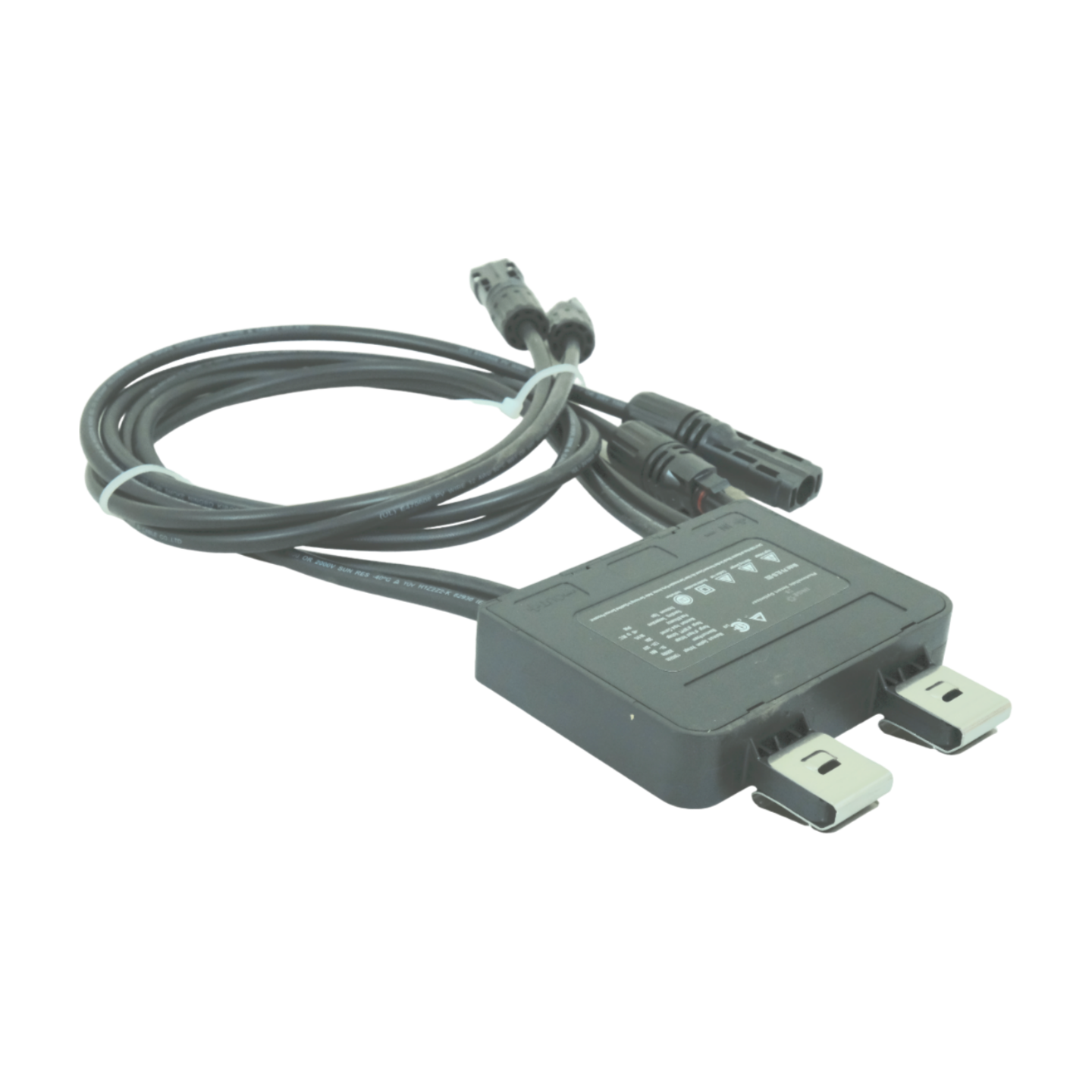

Inge Photovoltaic MPPT Smart Optimizer 800W 20A 60VDC
$32.22
$42.21
General Data Input Parameter • Maximum Input Power: 800W • Operating Voltage Range: 7VDC to 70VDC • MPPT Voltage Range: 7VDC to 70VDC • Maximum Input Current: 20A • Over-Current Protection: 25A • Over-Temperature Protection: 160°C Output Parameter • Maximum Output Current: 22A • Theoretical Maximum Output Voltage: 65VDC • Output Voltage Limiting Threshold: 42VDC • Total Maximum System Voltage: 1500VDC • 72 Type Module String @ 1500VDC: 36 Modules • 72 Type Module String @ 1100VDC: 26 Modules • 72 Type Module String @ 1000VDC: 24 Modules Conversion Efficiency • Peak Conversion Efficiency: 99.5% • Power Consumption @ 5A: 0.9W • Power Consumption @ 8A: 1.4W • Power Consumption @ 12A: 2.9W • Power Consumption @ 15A: 3.8W Specifications • Dimensions: 105mmL x 105mmW x 20mmH • Weight: 500g • Cable: 4.0mm² • Input Wire: 50cmL x 2PCS • Output Wire: 100cmL x 2PCS • Connector: MC4 Compatible • Operating Temperature Range: -40°C to 85°C • Protection Rating: IP65 • Design Life: 25 Years • Standard Features: Optimization, Voltage Limiting & Anti-Hotspot
