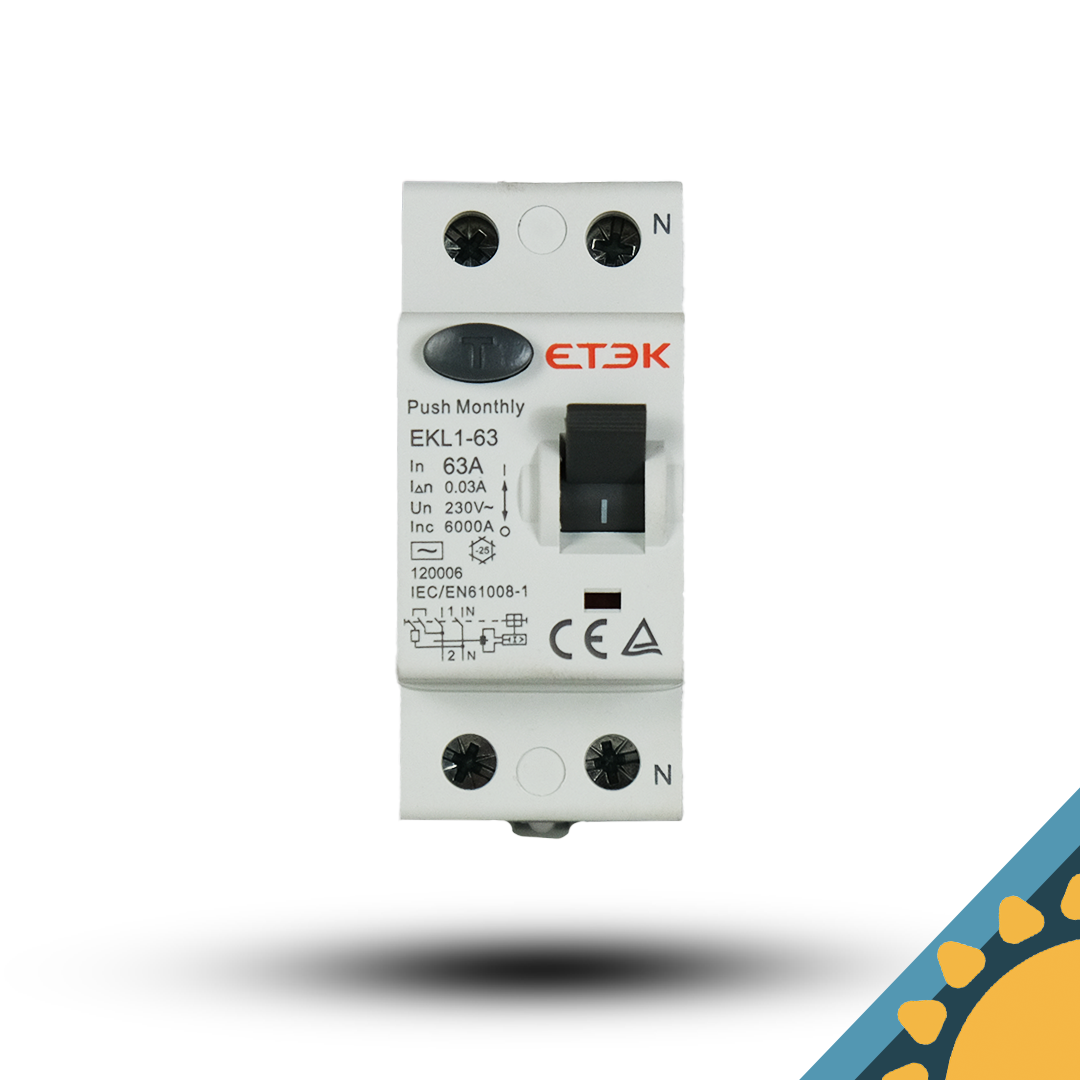

General Data: Mode: Electromagnetic Type: AC Rated Current In: 63A Poles: 2P(1P N) Rated Voltage Ue: 240VAC Insulation Voltage Ui: 500VAC Rated Frequency: 50/60Hz Rated Residual Operation Current (I△n): 0.03A Rated Residual Making and Breaking Capacity (I△m): 500A (In ≤ 40A) 10In (In > 40A) Short Circuit Current Inc=I△c: 6000A SCPD Fuse: 6000 Break Time Under I△n: ≤ 0.1s Rated Impulse Withstand Voltage (1.5/50) Uimp: 4000V Dielectric Test Voltage at Industrial Frequency for 1 min: 2.5kV Electrical Life: 2000 Cycles Mechanical Life: 4000 Cycles Contact Position Indicator: Yes Installation: Protection Degree: IP20 Operating Temperature: -5°C to 40°C Terminal Connection Type: Cable / Pin-Type Busbar / U-Type Busbar Terminal Size Top / Bottom For Cable: 25mm² (18-3AWG) Terminal Size Top / Bottom For Busbar: 25mm² (18-3AWG) Mounting: DIN Rail 35mm (Fast Clip device) Connection: Power Supply in Both Directions Safety Rating: IEC61008-1
