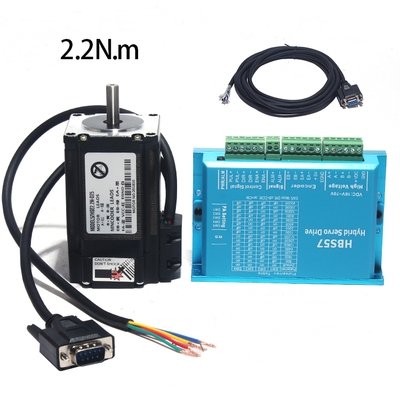

Motor model: 57HSE2.2NMotor current: 4AOutput torque: 2.2NmBody length: about 99MMShaft diameter: 8MM, no keywayOutlet mode: single output shaftRated speed: 1000 rpm (no-load speed: 2000 rpm)Outlet mode: two-phase four-wire (must be wired according to motor label)Drive Model: for HBS57 (Nema 23, for 57 stepper motor)Pulse Signal: 3.3V/5V/24V compatible. No string resistor requiredVoltage Range: DC16-70V (New Version: DC24-80, send in random)Subdivision Setting: 800-51200 subdivisionThe new 32 -bit DSP digital 57 closed-loop stepper motor driver, engraving machine, CNC equipment available. PWM current control, low noise, high speed torque is 40% larger than ordinary drives.Colour:blueMaterial:metalPackage Contents:1 x for HBS57 Stepper Motor Drive1 x 57HSE2.2N 2.2NM Motor1 x 30cm Encoder Cable (with port)1 x 30cm Motor Cable1 x Gift: Encoder CableOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
