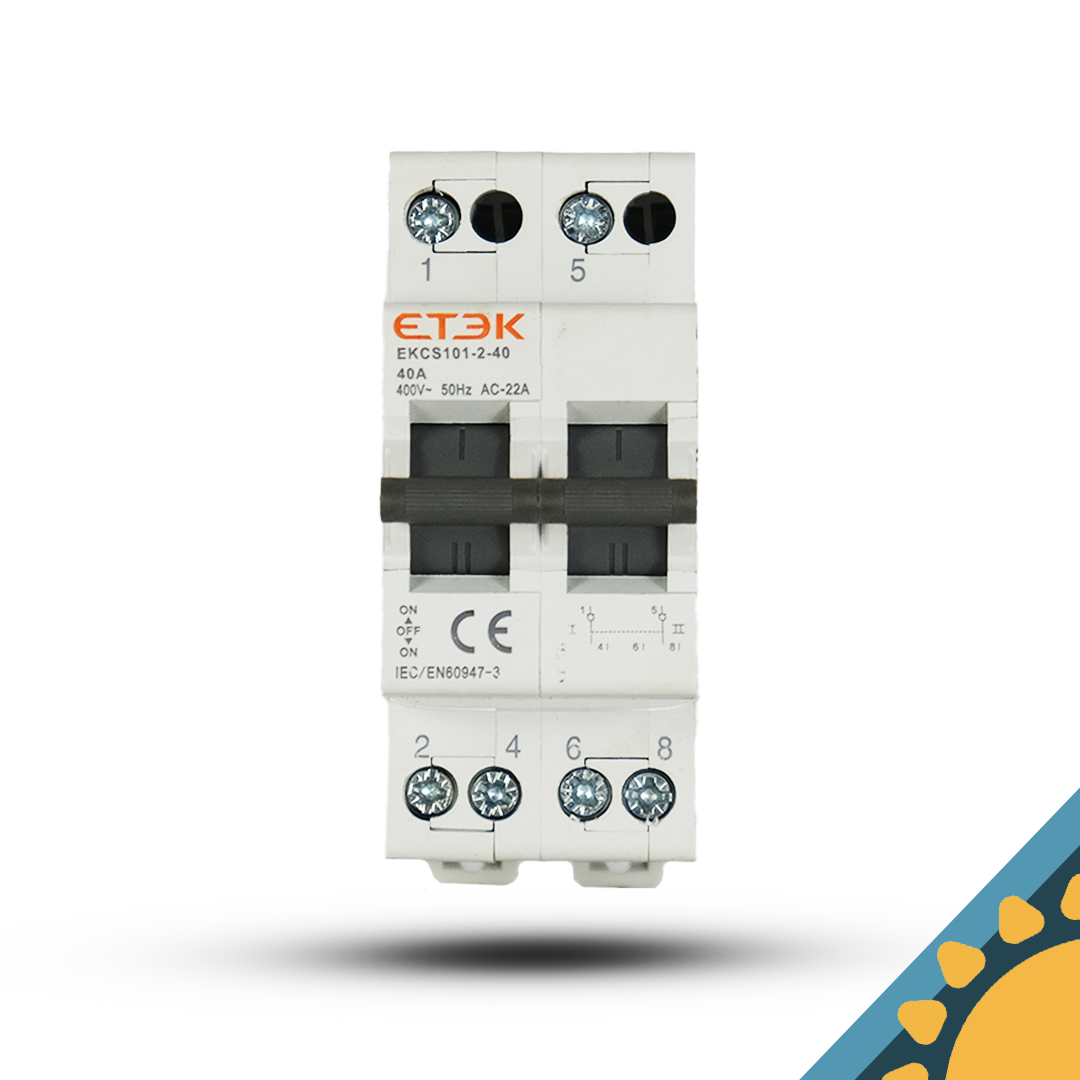

The EKCS101 rail-mounted dual power conversion isolation switch is designed to transfer electrical power between the commercial power grid and a local generator during an outage. Also known as a transfer switch, it ensures continuous power supply by connecting directly to the generator, commercial power supply, or line, and the house or business electrical system. Key Features: Dual Power Conversion: Allows seamless switching between two power sources or two loads carried by a group of lines. Ensures reliable power supply during outages by connecting to a local generator. Four Functions: On: Connects power to the load. Off: Disconnects power from the load. Conversion: Switches between two power sources or loads. Isolation: Isolates the power source for safety and maintenance. DIN Rail Mounting: Uses a DIN standard rail (35×7.5) for easy installation. The PA66 injection-molded shell offers high flame-retardant performance. High Current Capacity: Supports a maximum current of 40A, making it suitable for various industrial and commercial applications. Safety and Convenience: Easy to install and wire on the guide rail. Provides reliable performance with high electrical and mechanical life cycles. Technical Specifications: Rated Voltage: 240/415V~ Rated Current: 40A Rated Frequency: 50/60Hz Number of Poles: 2P Utilization Category: AC 22A Contact Form: I-0-II Electrical Life: 1500 cycles Mechanical Life: 8500 cycles Protection Degree: IP20 Ambient Temperature: -5℃ to 40℃ Terminal/Cable Size: 16mm² Mounting: DIN EN60715 (35mm) by means of a fast clip device Applications: The EKCS101 switch is ideal for a range of applications, including: Residential Power Management: Ensures continuous power supply by switching to a generator during outages. Commercial Power Systems: Provides reliable power switching in commercial buildings. Industrial Equipment: Used for on-off and switching operations in industrial circuits and equipment. Emergency Power Supply: Facilitates quick and safe transfer of power during emergencies. Safety and Compliance: Flame-Retardant Shell: Made of PA66 for high safety standards. DIN Rail Mounting: Ensures secure and easy installation. Compliance: Designed to meet relevant safety and performance standards. Conclusion: The EKCS101 rail-mounted dual power conversion isolation switch is an essential component for ensuring uninterrupted power supply in residential, commercial, and industrial settings. Its robust design, easy installation, and reliable performance make it a valuable asset for managing power sources and ensuring safety during power transitions.
