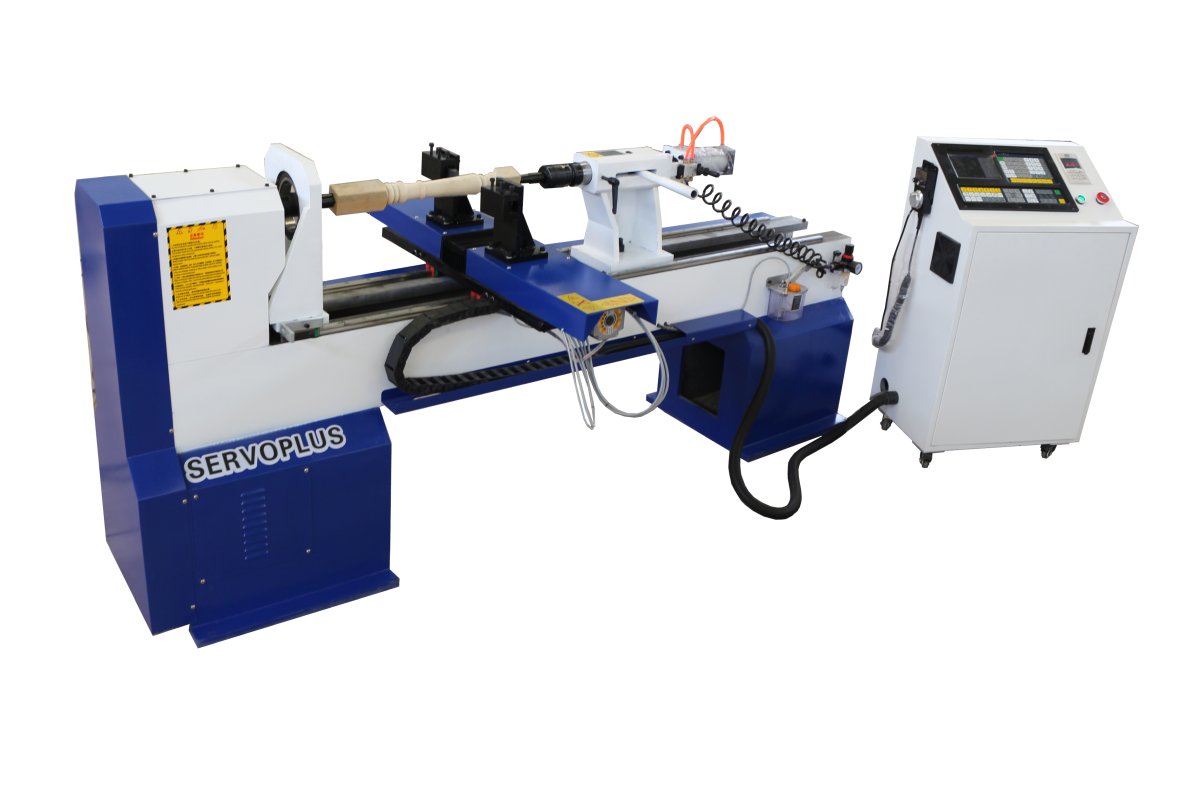

CNC Wood Lathe L1225

$38.95 $64.27
Maximum processing length  1250mmMaximum turning diameter  250mmStructure   Single axis two bladesMaterial   Heavy duty cast iron machine bedAir pressure   0.6-0.8MpaMaximum processing speed   2000mm/minMinimum processing unit   0.001mmTransmission    X, Y,Z-axis : lead ball screw transmission diameter 25mmGuide rail   Linear square guide rail, Hiwin, Taiwan, diameter 20mmSpindle turning speed   0-2800rpmMain motor power   4kw, three-phase asynchronous motorControl system  1000T controller with handhweelMotor   Stepper motor,86BYGH450B, 1.8°, 5.0ADriver   Stepper driver, Yako, 2D811Inverter   BEST, China, install the adjusting panel on the control cabinetDrawing Software   AutoCADHand controller recognize file   *.dxf  *G-code  *.CNC  *.NC  *.TextRotate top & Tailshaft   Rotate top Mohs # 4 & # 60 TailshaftMaterial clamping method    Air cylinder clampingBlades material   Superhard alloyVoltage   AC 220V ±10%, 50/60Hz, single phaseLubrication system   Semi-autoMachine size   2290*1070*960mmN.W   800kg
