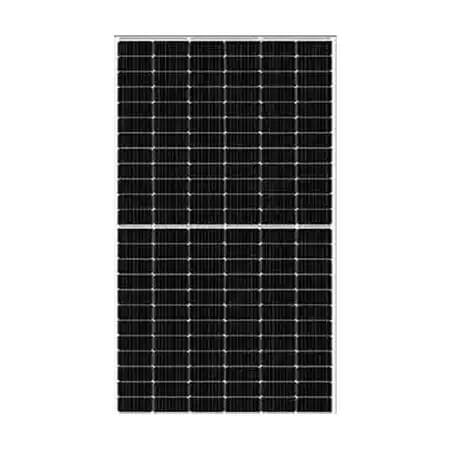

Description CNBM 450W Solar Panel Half-Cut Mono is a solar panel that can be used to power up your home and other devices. We’ve got a great solar panel for you! 450w solar panels are a popular choice for residential and commercial applications. The 450w solar panel is a great option for those who want to generate their own electricity. The CNBM 450W Solar Panel is perfect for your home or business. It’s rated at 450W, and it’ll give you 10 years of 90% output power and 25 years of 80% output power—that’s a lot of energy! It’s made with Halt-Cut Monocrystalline Silicon, the cells are arranged in series (6 x 12 x 2) to give you 144 cells total. The 20.70% efficiency means that every panel will produce more than 20% of its rated power at peak sunlight. The M-450 CNBM model is compatible with MC4 connectors, so it’ll be easy to connect to your system. DATASHEET. CNBM 450W Solar Panel_Datasheet. CHARACTERISTICS. Model: M-450. Rated Maximum Power(Mp): 450W. Module Efficiency: 20.70%. Open Circuit Voltage(Voc): 49.30V. Maximum Power Voltage(Vmp): 41.5V. Short Circuit Current(lsc): 11.60A. Maximum Power Current(Imp): 10.85A. PERFORMANCE PARAMETERS. Type of Cells: Halt-Cut Monocrystalline Silicon, 166 X 83mm Cell Arrangement: (6 x 12 x2)= 144. Dimensions: 2095 x 1039 x 35mm. Weight: 23.5kg. Front Cover: 3.2mm Tempered Glass. Frame Material: Silver Anodized aluminium alloy. Junction Box: IP67/1P68. Cable: 4mm2, 900mm. Connector: MC4 Compatible. WARRANTY. 10-year product warranty. 10 Year 90% of Min. rated output power. 25-year 80% of Min. rated output power warranty
