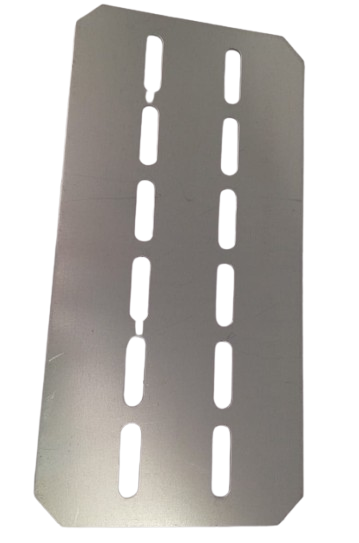

Splice Plate For Struts Installation Notes: Plate is centered over the rail joint, with half of the plate seated on each rail segment. Bolts are inserted through slots into the rail’s internal channel or pre-drilled holes. Torque specifications depend on bolt grade and rail manufacturer requirements. Ensure zinc coating is not excessively damaged during installation; apply cold-galv spray to scratches if needed. Advantages: Simple, non-welded jointing solution. High corrosion resistance due to galvanizing. Multiple slotted holes offer excellent versatility and alignment capability. Compatible with various rail profiles.
