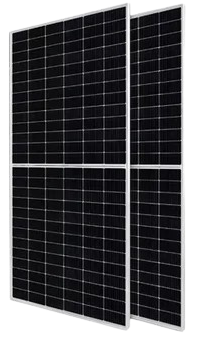

Bifacial Double Glass MONO crystalline Solar Module TYPICAL PERFORMANCE CHARACTERISTICS Typical Power (Wp): 605Wp Tolerance (%): - 3 Voltage at Max Power (Vmp): 45.05 Current at Max Power (Imp): 13.43 Open Circuit Voltage (Voc): 53.00 Short Circuit Current (Isc): 14.09 Standard Test Conditions: 1000W/m2 AM1.5 and 25 oC TEMPERATURE COEFFICIENTS Temperature Coefficients (Pmax) – 0.3% / oC Temperature Coefficients (Voc) – 0.250% / oC Temperature Coefficients (Isc) 0.045% / oC Nominal Operating Cell Temp (NOCT) 43 - 2 oC CELLS Type: MONO crystalline Layout: 144 Cells GENERAL INFORMATION Maximum System Voltage: 1500Vdc Frame Anodized Aluminum Alloy Packaging: 2 Modules Per Package WARRANTY LOCALLY SUPPORTED Construction: 10 Years Power Output Terrestrial: 20 Years / 80% Yield Marine: 5 Years / 80% Yield MECHANICAL SPECIFICATIONS Dimensions: 2278 -2mm x 1134 -2mm x 30 -1mm
