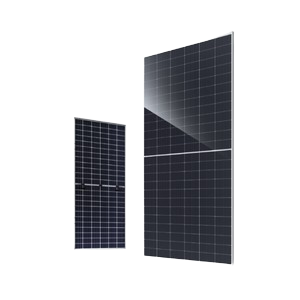

Bifacial Double Glass MONO crystalline Solar Module TYPICAL PERFORMANCE CHARACTERISTICS Typical Power (Wp): 630Wp Tolerance (%): - 3 Voltage at Max Power (Vmp): 41.6 Current at Max Power (Imp): 15.16 Open Circuit Voltage (Voc): 48.8 Short Circuit Current (Isc): 16.20 Standard Test Conditions: 1000W/m2 , AM1.5 and 25 oC TEMPERATURE COEFFICIENTS Temperature Coefficients (Pmax) – 0.29% / oC Temperature Coefficients (Voc) – 0.25% / oC Temperature Coefficients (Isc) 0.05% / oC Nominal Operating Cell Temp (NOCT) 43 - 2 oC CELLS Type: MONO crystalline Layout: 132 Cells GENERAL INFORMATION Maximum System Voltage: 1500Vdc Frame Anodized Aluminum Alloy Packaging: 2 Modules Per Carton Box WARRANTY LOCALLY SUPPORTED Construction: 10 Years Power Output Terrestrial: 20 Years / 80% Yield Marine: 5 Years / 80% Yield MECHANICAL SPECIFICATIONS Dimensions: 2382mm x 1134mm x30mm
