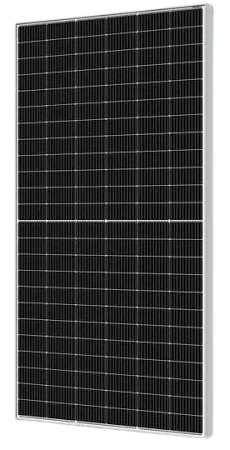

TYPICAL PERFORMANCE CHARACTERISTICS Typical Power (Wp): 540Wp Tolerance (%): - 3 Voltage at Max Power (Vmp): 41.3V Current at Max Power (Imp): 13.08A Open Circuit Voltage (Voc): 49.2V Short Circuit Current (Isc): 13.90A TEMPERATURE COEFFICIENTS Temperature Coefficients (Pmax) – 0.34% / oC Temperature Coefficients (Voc) – 0.26% / oC Temperature Coefficients (Isc) 0.05% / oC Nominal Operating Cell Temp (NOCT) 41 - 3 oC CELLS Type: MONO crystalline Layout: 36 Cells GENERAL INFORMATION Maximum System Voltage: 1000Vdc Frame Anodized Aluminum Alloy Packaging: 2 Modules Per Carton Box WARRANTY LOCALLY SUPPORTED Construction: 20 Years Power Output Terrestrial: 20 Years / 80% Yield Marine: 10 Years / 80% Yield MECHANICAL SPECIFICATIONS Dimensions: 2261mm x 1134mm x 35mm
