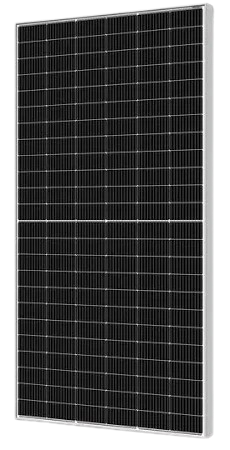

MONO crystalline Solar Module TYPICAL PERFORMANCE CHARACTERISTICS Typical Power (Wp): 460W Tolerance (%): - 3 Voltage at Max Power (Vmp): 34.8V Current at Max Power (Imp): 13.24A Open Circuit Voltage (Voc): 41.4V Short Circuit Current (Isc): 14.00A Standard Test Conditions: 1000W/m2 , AM1.5 and 25 oC TEMPERATURE COEFFICIENTS Temperature Coefficients (Pmax) – 0.34% / oC Temperature Coefficients (Voc) – 0.26% / oC Temperature Coefficients (Isc) 0.05% / oC Nominal Operating Cell Temp (NOCT) 41 - 3 oC CELLS Type: MONO crystalline Layout: 36 Cells GENERAL INFORMATION Maximum System Voltage: 1000Vdc Frame Anodized Aluminum Alloy Packaging: 2 Modules Per Carton Box WARRANTY LOCALLY SUPPORTED Construction: 10 Years Power Output Terrestrial: 20 Years / 80% Yield Marine: 10 Years / 80% Yield MECHANICAL SPECIFICATIONS Dimensions: 1903mm x 1134mm x 30mm
