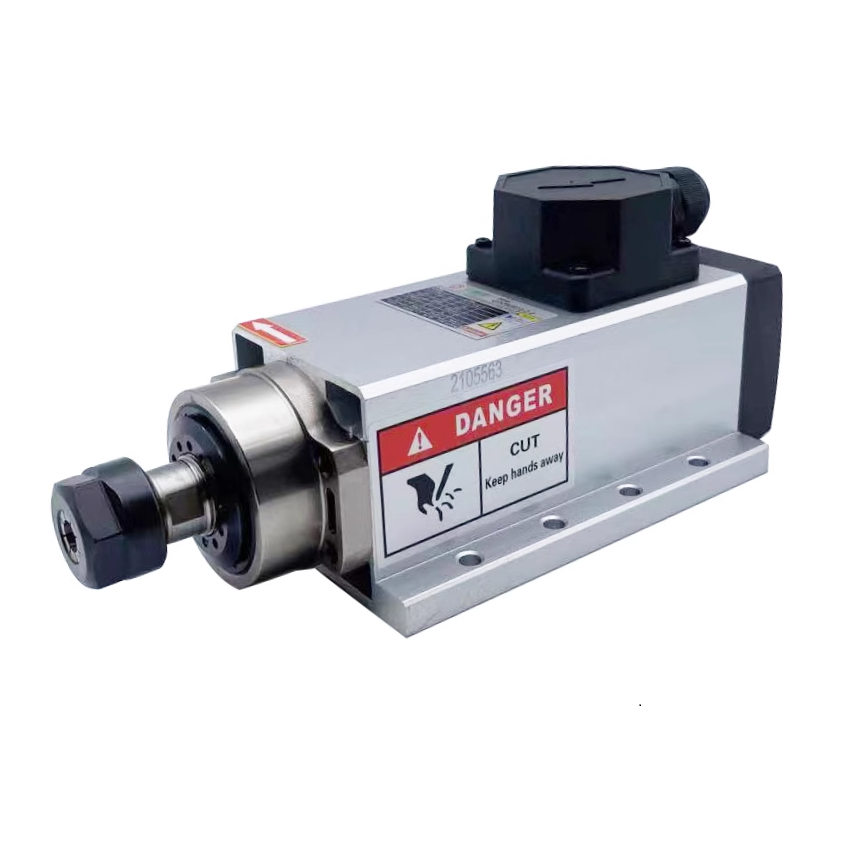

Air Cooled Spindle 220V

$10.88 $20.89
Item Name: Square Air Cooled Spindle 220V Specs: 4 x Bearings; Pure Copper Coil PCs in Item: 1 (option 1 Set) Manufacturer: ChangSheng, China Specs 1.5KW-ER11 2.2KW-ER20 3.5KW-ER20 4.5KW-ER32 6KW-ER32 Power 1.5KW 2.2KW 3.5KW 4.5KW 6KW Rated Current 5A 6A 15A 16.5A 22A Input Voltage 220V 50/60Hz 220V 50/60Hz 220V 50/60Hz 220V 50/60Hz 220V 50/60Hz Size(WxHxL,mm) 80 x 73 x 232 81 x 73 x 232 105 x 102 x 307 120 x 103 x 329 120 x 103 x 371 Max Speed 24000 rpm 24000 rpm 18000 rpm 18000 rpm 18000 rpm Frequency 400Hz 400Hz 300Hz 300Hz 300Hz Collet ER11 ER20 ER20 ER32 ER32 Number of Bearing 4 4 4 4 4 Weight 3.6KG 4.8KG 8KG 12KG 15 Max Torque 0.59Nm 0.87Nm 1.85Nm 2.38Nm 3.18Nm
